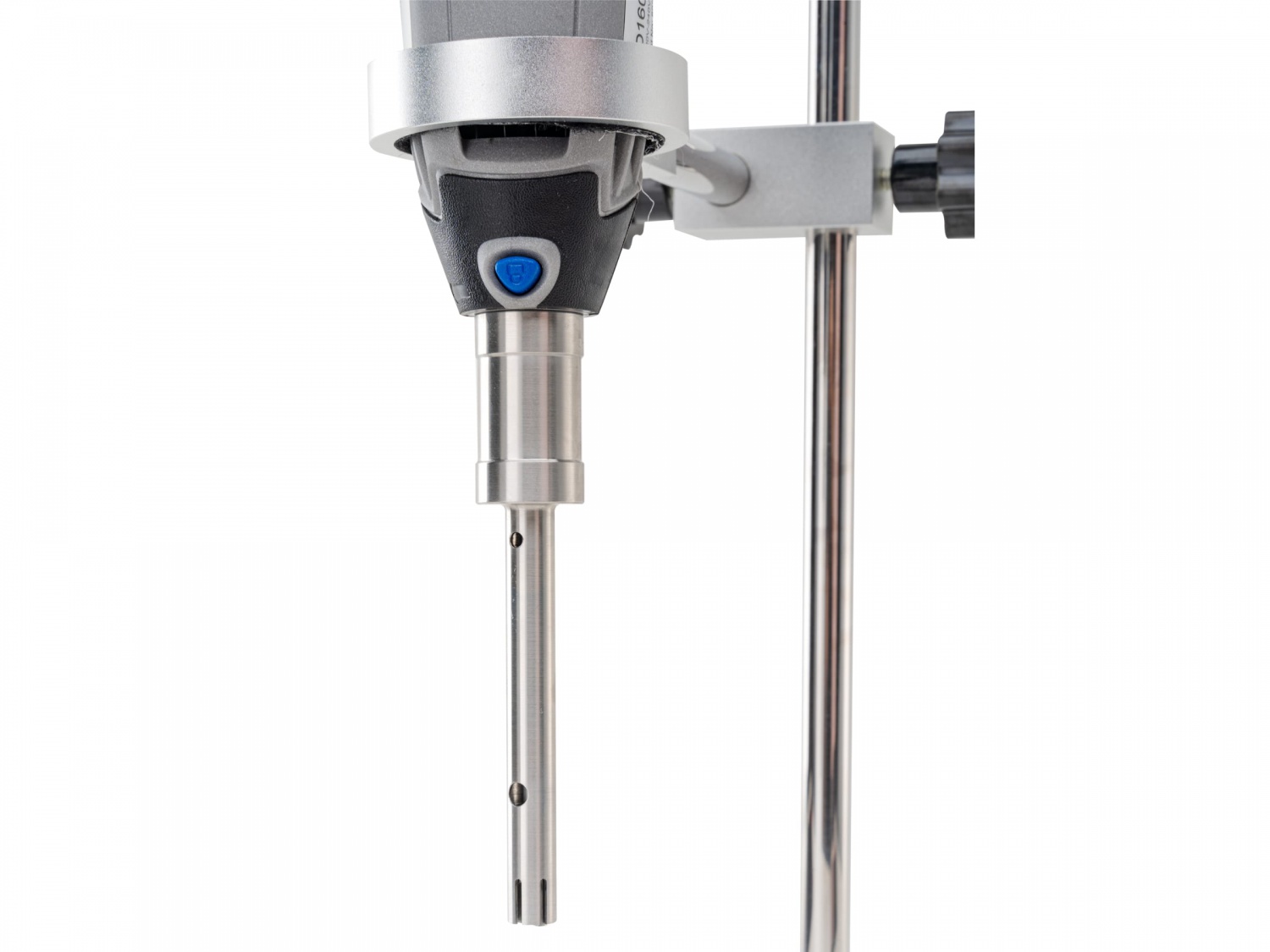

D-160

D-160

Features:

• Ideal for manual operation due to its light weight and ergonomic design

• Processing range: 0.1-50mL or 1-250mL

• 316L stainless steel shafts are fully autoclavable and inert for highly corrosive solutions

• All shafts are interchangeable for easy dismantling and cleaning.

• 10 modes of motor speed from 8,000 to 30,000 rpm

D-160

Features:

• Ideal for manual operation due to its light weight and ergonomic design

• Processing range: 0.1-50mL or 1-250mL

• 316L stainless steel shafts are fully autoclavable and inert for highly corrosive solutions

• All shafts are interchangeable for easy dismantling and cleaning.

• 10 modes of motor speed from 8,000 to 30,000 rpm

Specifications	D-160
Power Supply	110-120V/60Hz 220-240V / 50-60 Hz
Motor Type Universal motor	160 W AC carbon brush motor
Speed Range	8000-30000rpm
Max. Circum. Speed	6.3-14m/sec
Speed Control Dial knob	10 stage
Working Volume [ H 2 O]	0.1-50mL (Dispersing shaft DS-160/5)
Working Volume [ H 2 O]	1-250mL (Dispersing shaft DS-160/10)
Max. Viscosity	5,000mPas
Material of Dispersing Shaft	SS 316L stainless steel, PTFE
Weight	0.54 kg
Dimension [L x W x H]	46mm x 55mm x 230mm
Noise	72 dB(A)
Operating Environment	0-40 ℃,85% rel. humidity
Protection Class	IP20

Cat.No.	P/N	Descriptions	Power supply
8034111000	D-160 Package 1	D160 drive, H 370 Stand, DS-160/5 shaft，volumes from 0.1-50ml	USA plug, 110-120V, 50/60Hz
			Cn plug, 220-240V, 50/60Hz
8034121000	D-160 Package 2	D160 drive, H 370 Stand, DS-160/10 shaft，volumes from 1- 250ml	USA plug, 110-120V, 50/60Hz
			Cn plug, 220-240V, 50/60Hz

Cat. No.	P/N	Descriptions
18900543	DS-160/5	Dispersing shaft 5mm，for solid/liquid media and volumes from 0.1-50ml
18900544	DS-160/10	Dispersing shaft 10mm, for solid/liquid media and volumes from 1- 250ml
