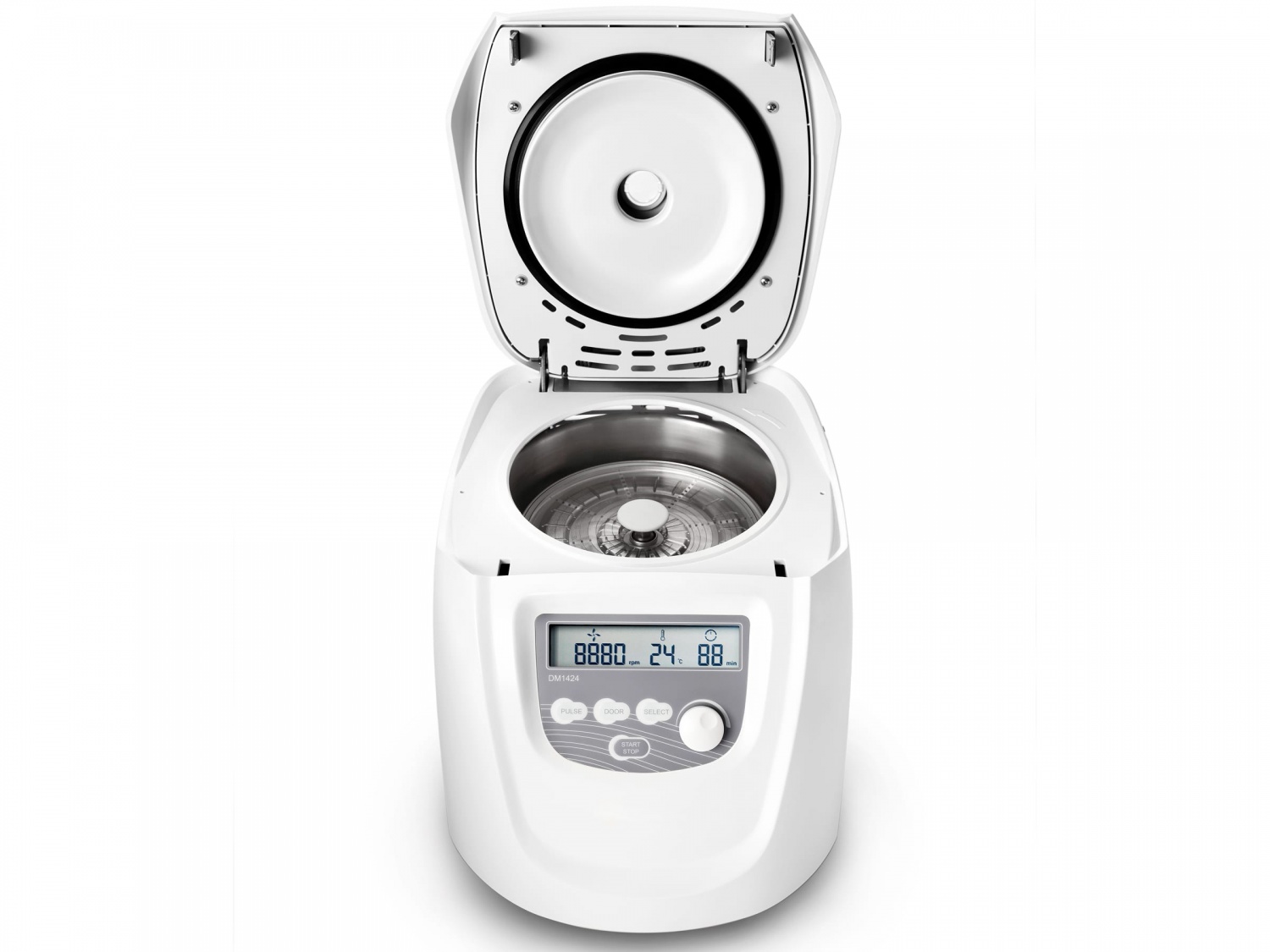

DM1424 Hematocrit Centrifuge

Key Features

•   Speed range of 200-14000rpm, max. RCF 18620×g
•   Precise control of speed and time separately
•   Easy operation with intuitive menu and easy-to-read display
•   Maintenance-free brushless DC motors
•   Pulse operation for quick spins
•   Rotor capacity: Hematocrit rotor
•   Hematocrit rotor:24 capillary max. speed:12000rpm

Parameters

Specification
Order Info.

Specifications	DM1424
Speed Range	200-14000rpm, increment: 10rpm
Max. RCF	18620×g
Speed Accuracy	±20 rpm
Rotor Capacity	2 type
Run Time	30sec-99min/Continuous
Motor	Brushless DC moto
Display	LCD
Safety Devices	Door interlock,Overspeed detector;Over-temperature detector, Automatic internal diagnosis, Automatic rotor identification
Power	Single-phase, 220V-240V,50Hz/60Hz, 5A;110V-120V,50Hz/60Hz, 5A 500W
Acceleration /Braking time [Sec]	30s↑30s↓
Dimension [D×W×H]	280×364×274mm
Weight	10kg
Certification	CE cTÜVus FCC MCA
Advanced Features	Speed/RCF switch; Short-time run function; sound-alert function

Cat. No.	P/N	Descriptions	Power supply
9033001124	DM1424	Hematocrit Centrifuge，with AC24 rotor kit(package contain in the box)	US plug, 110-120V/50Hz/60Hz
			Cn plug, 220-240V/50Hz/60Hz
			Euro plug, 220-240V/50Hz/60Hz
			UK plug, 220-240V/50Hz/60Hz

Accessories DM1424
Cat. No.	P/N	Descriptions
19400046	AC24	Hematocrit rotor kit with a lid and a reading disk, 12000rpm, 24 x capillary tubes, used with DM1424
