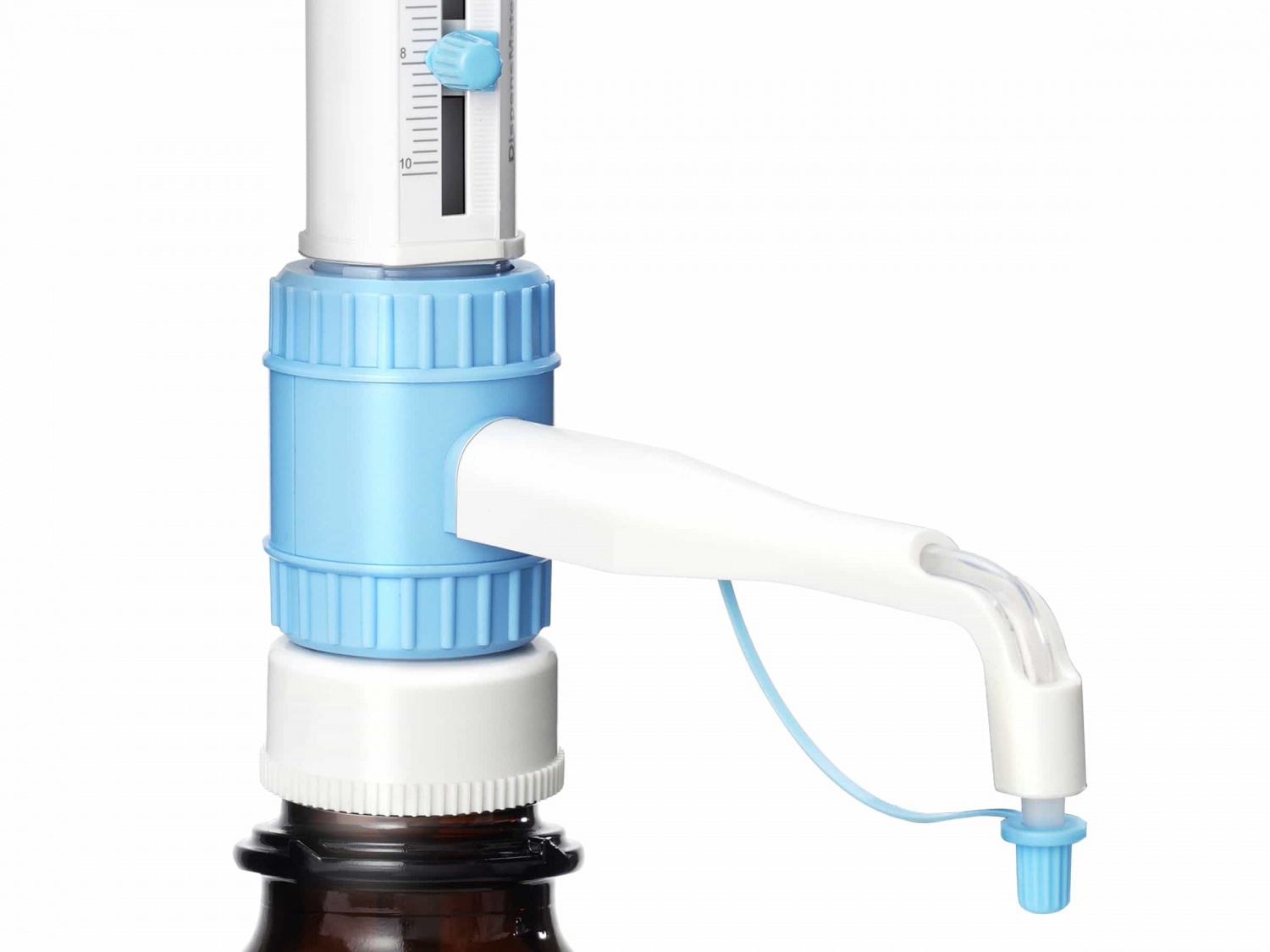

DispensMate

Key Features

•   Excellent chemical resistance, components are made of PTFE, FEP, BSG, PP
•   Fully autoclavable at 121℃
•   Four ranges of bottle-top dispenser covering a volume range from 0.5mL to 50mL
•   Easy for cleaning and maintenance
•   The optional flexible discharge tube with safety handle permits fast and precise dispensing
•   Vapor pressure max. 500mbar, viscosity max. 500mm2/s,

• temperature max. 40oC, density max. 2.2g/cm3
• Dispensemate is supplied with S40, GL32, GL38,GL25, GL28

Parameters

• temperature max. 40oC, density max. 2.2g/cm3
• Dispensemate is supplied with S40, GL32, GL38,GL25, GL28

Specification
Order Info.

Cat.No.	Volume Range ml	Graduation ml	A≤±		CV≤
Cat.No.	Volume Range ml	Graduation ml	％	μl	％	μl
7032100001	0.5-5	0.1	0.5	25	0.2	10
7032100002	1.0-10	0.2	0.5	50	0.2	20
7032100003	2.5-25	0.5	0.5	125	0.2	50
7032100004	5.0-50	1.0	0.5	250	0.2	100

Bottle Top Dispenser-DispensMate -Without Brown reagent bottle
Cat. No.	Volume
7032100001	0.5-5ml
7032100002	1-10ml
7032100003	2.5-25ml
7032100004	5-50ml
17400037	Reagent Bottle (Brown, 1L)

Accessories
Cat. No.	Descriptions
17000069	S40, Adapter, 45/40 mm
17400017	GL32, Adapter, 45/32 mm
17400018	GL38, Adapter, 45/38 mm
17400019	GL25, Adapter, 32/25 mm
17400020	GL28, Adapter, 32/28 mm
17400021	Filling tube（m）
17100073	Discharge tube（m）
