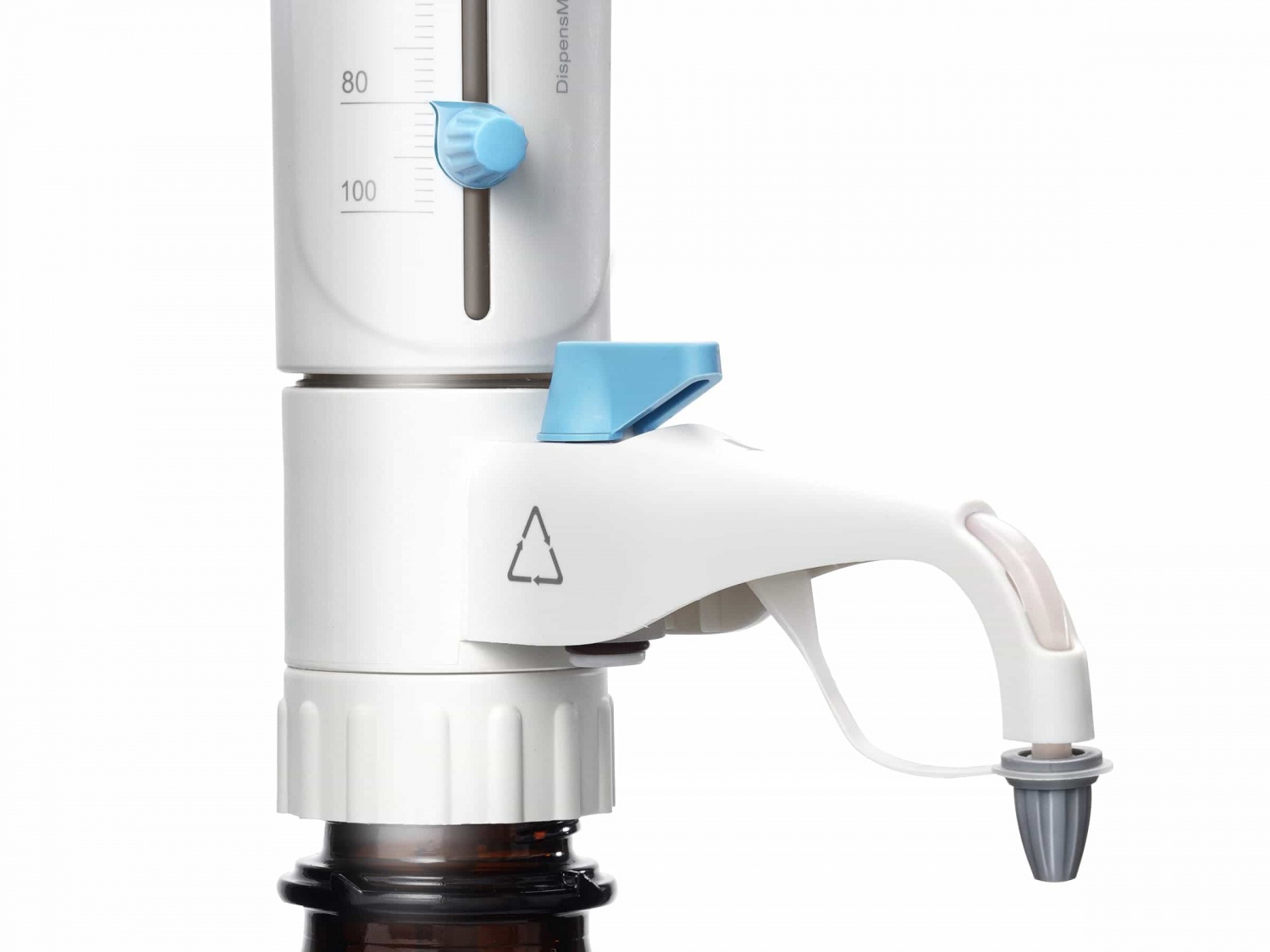

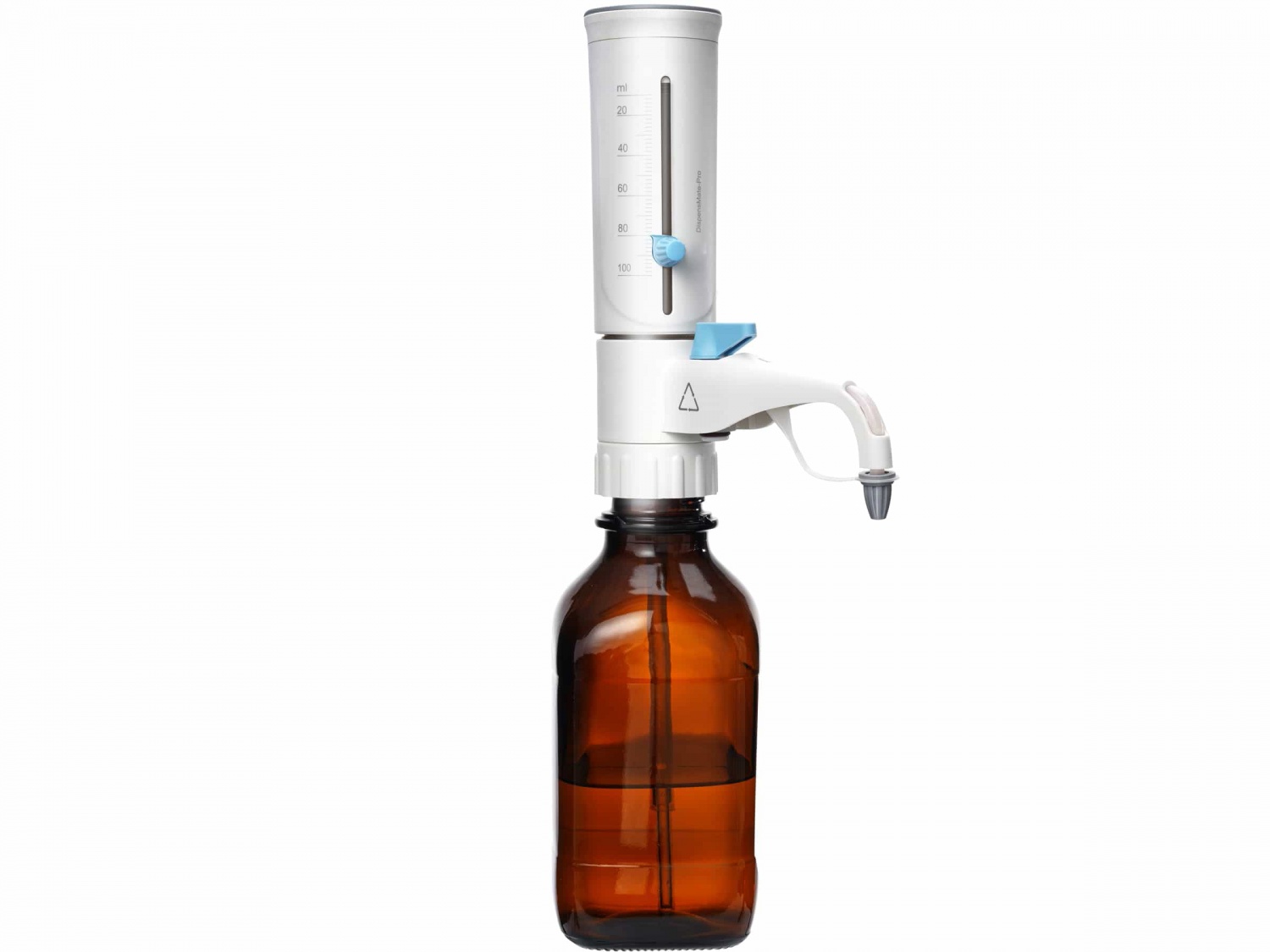

DispensMate-Pro

Key Features

•   Excellent chemical resistance;
•   Fully autoclavable at 121℃;
• Reagent recovery function reduces waste and prevents dripping when not in operation;
• Fast, reliable and reproducible volume locking mechanism;
•   Easy to disassemble and clean,minimum maintenance;
• With 6 different adapters for regent bottles of various sizes;
•   For liquid with vapor pressure uo to 500mbar, viscosity up to 500mm²/s, temperature up to 40℃，density up to 2.2g/cm³；
• Flexible filling tube adapts to reagent bottles of various sizes.

Parameters

Specification
Order Info.

Volume Range mL	Graduation ml	A≤±		CV≤
Volume Range mL	Graduation ml	%	μl	%	μl
0.5-5	0.1	0.5	25	0.2	10
1.0-10.0	0.2	0.5	50	0.2	20
2.5-25.0	0.5	0.5	125	0.2	50
5.0-50	1.0	0.5	250	0.2	100
10-100	2.0	0.5	500	0.2	200

DispensMate-Pro
Cat.No.	Volume ml
Cat.No.	Volume ml
7032111005	10-100ml
7032111004	5.0-50ml
7032212003	2.5-25ml
7032212002	1.0-10ml
7032212001	0.5-5ml

Accessories

Cat. No.	Descriptions
17400037	Reagent Bottle (Brown, 1L)
17000069	S40, Adapter, 45/40 mm,used for DispensMate
17400135	S40, Adapter, 45/40 mm,used for DispensMate Pro&S
17400017	GL32, Adapter, 45/32 mm
17400018	GL38, Adapter, 45/38 mm
17400019	GL25, Adapter, 32/25 mm
17400020	GL28, Adapter, 32/28 mm
17400021	Filling tube（m）,used for DispensMate
17900158	Filling tube,used for DispensMate Pro&S
17100073	Discharge tube（m）,used for DispensMate
17000802	Discharge tube,used for DispensMate Pro&S
