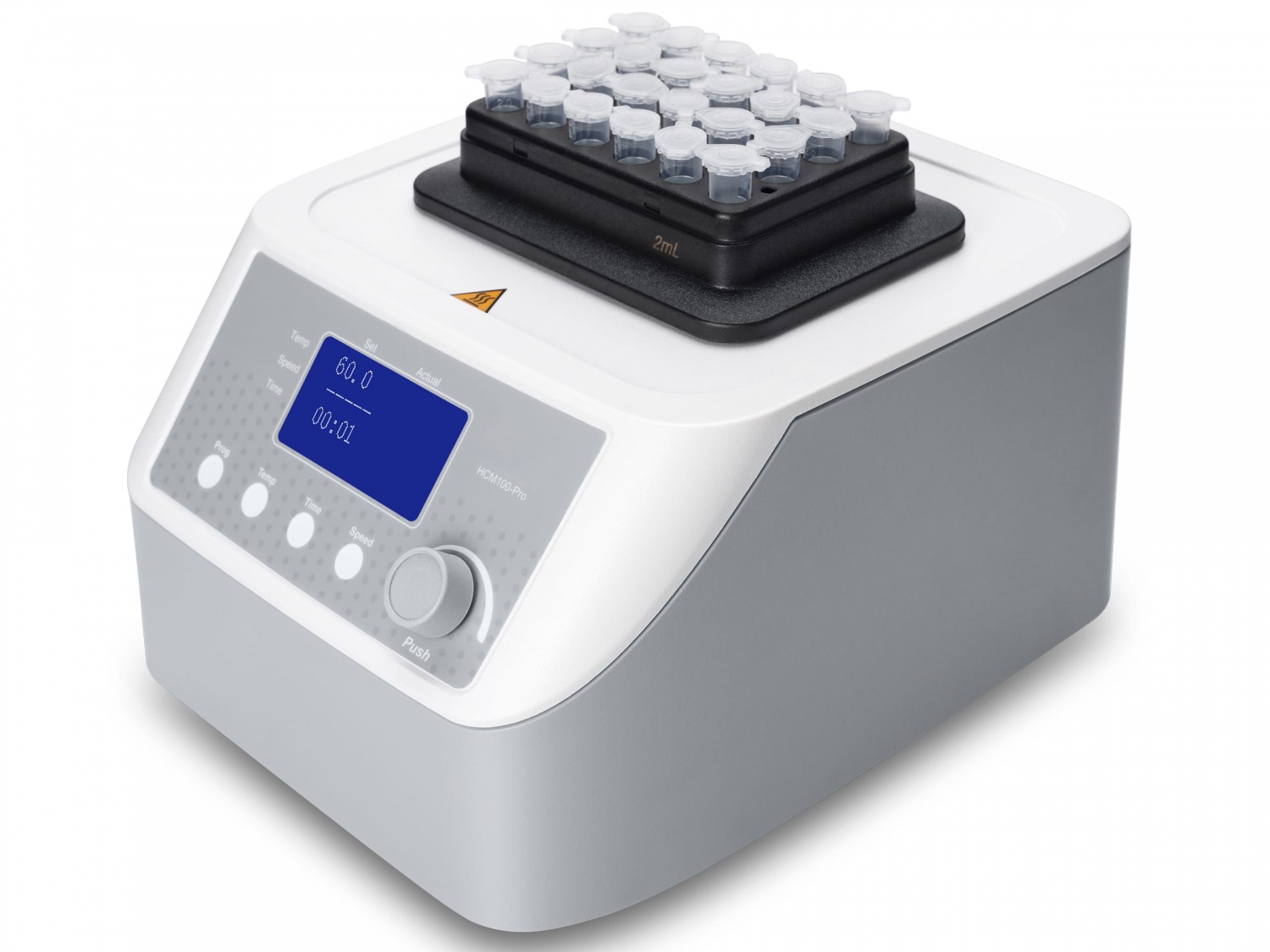

HCM100-Pro
Key Features
• Excellent mixing result
• Stable and wide range of speed adjustment
• Precise temperature control for heating and cooling
• Flexible adapter selection
• Programmable
• Compatible with various tubes
• Quick interchange of blocks with magnet adhesion technology and without any tools
• Block equipped with a lid for heat preservation
- Parameters
Key Features
• Excellent mixing result
• Stable and wide range of speed adjustment
• Precise temperature control for heating and cooling
• Flexible adapter selection
• Programmable
• Compatible with various tubes
• Quick interchange of blocks with magnet adhesion technology and without any tools
• Block equipped with a lid for heat preservation
| Specifications | HCM100-Pro |
| Functions | Heating, cooling & mixing |
| Temperature range | Heating: room temp. - 100°C Cooling: room temp. - below room temp. 15°C |
| Temperature setting range | 0.1-100℃ |
| Temperature control accuracy | ± 0.5°C |
| Temperature uniformity | Max.± 0.5°C |
| Max. heating rate | 5.5°C/min |
| Max. cooling rate | 5°C /min(100°C-room temp.) 0.5°C/min(below room temp.) |
| Mixing frequency | 200-1500rpm |
| Mixing orbit | 3mm |
| Screen | TFT |
| Overheating protection | 150°C |
| Adapter block material | aluminum |
| Voltage, Frequency | DC12V,100–240V,50/60Hz |
| Power | 200W |
| Dimension [D×W×H] ( without the heating block ) | 200×235×120mm |
| Weight | 7.3kg |
| Cat. No. | P/N | Descriptions | Power supply |
| 5062103100 | HCM100-Pro | LCD digital Thermo Mix with heating, cooling,mixing,with 1pcs heating block for free (select a size) | USA plug,100V-120V/50Hz/60Hz |
| Cn plug, 200V-240V/50Hz/60Hz | |||
| Euro plug, 200V-240V/50Hz/60Hz | |||
| UK plug, 200V-240V/50Hz/60Hz |
| Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Black | ||||
| Cat. No. | P/N | Descriptions | ||
| 18900401 | Heating block, used for 0.5mL tubes, 24 holes | |||
| 18900402 | Heating block, used for 1.5mL tubes, 24 holes(cone bottom) | Replaced 18900448 | ||
| 18900403 | Heating block, used for 2mL tubes, 24 holes( round bottom) | Replaced 18900450 | ||
| 18900404 | Heating block, used for 5mL tubes, 8 holes | |||
| 18900405 | Heating block, used for 5mL tubes, 8 holes, cone bottom | Replaced 18900466 | ||
| 18900406 | Heating block, used for 15mL tubes, 8 holes | |||
| 18900407 | Heating block, used for 50mL tubes, 4 holes | Replaced 18900456 | ||
| 18900420 | Heating block, used for 0.2ml/96 well PCR plate | |||
| 18900423 | Heating block, used for 96/384 microplate | |||
| Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Gray | ||||
| Cat. No. | P/N | Descriptions | ||
| 18900446 | Heating block, used for 0.5mL tubes, 24 holes | |||
| 18900452 | Heating block, used for 5mL tubes, 8 holes | |||
| 18900422 | Heating block, used for 0.2ml/96 well PCR plate | |||
| 18900425 | Heating block, used for 96/384 microplate | |||
