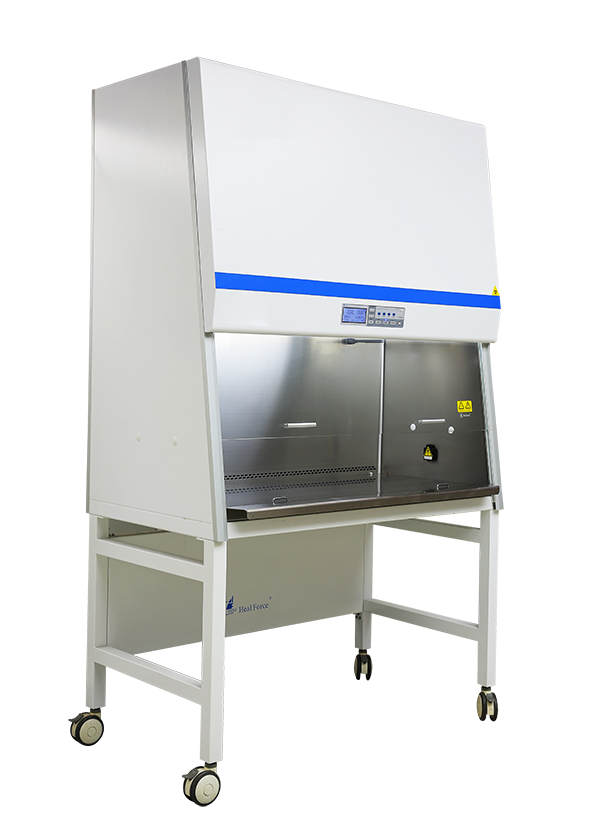

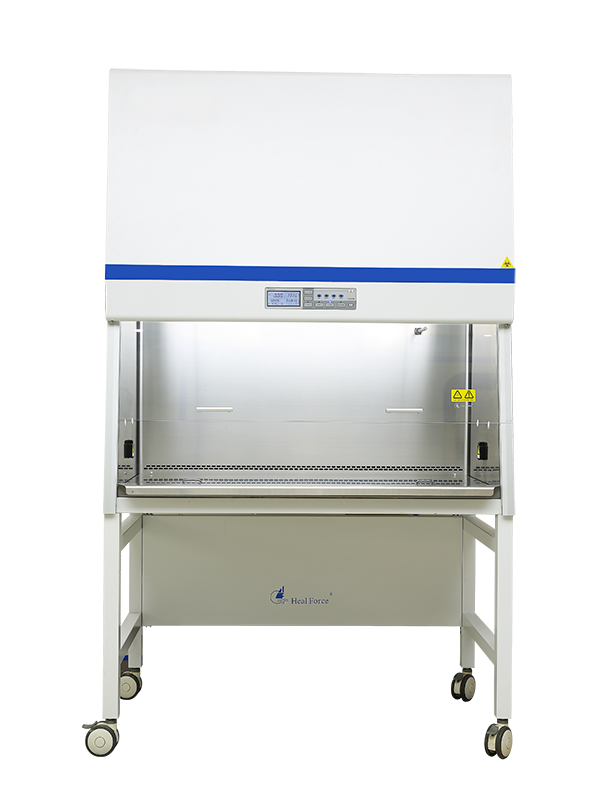

HFsafe 1200LCN（NSF）
With an extensive track record of safety, reliability and performance, HFsafe LC cabinets make ideal investments for a wide range of applications including work with infectious agents that require Biosafety Level 1, 2 or 3 containment.
In line with requirements of the US NSF/ANSI49 standard for Class II biological safety cabinets to be classified as Type A2, with corresponding NSF certificates.
- Parameters
With an extensive track record of safety, reliability and performance, HFsafe LC cabinets make ideal investments for a wide range of applications including work with infectious agents that require Biosafety Level 1, 2 or 3 containment.
In line with requirements of the US NSF/ANSI49 standard for Class II biological safety cabinets to be classified as Type A2, with corresponding NSF certificates.
On-compromising safety
- Patented Flow-saFe system automatically balances the downflow and inflow velocities to maintain user and sample protection.

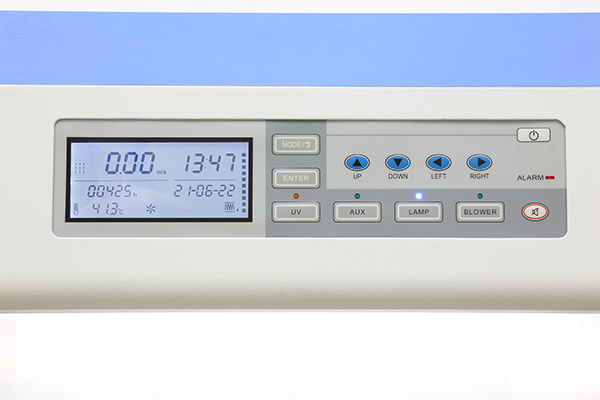

- You can keep a constant check on the airflow, window position etc.- anytime, anywhere.
- When the front sash is closed, our intelligent speed control automatically reduces flow speed.
- Negative-pressure, dual side walls prevent the possibility of contamination from leaks to the exterior environment.
Enhanced comfort and convenience
- 10 ° backward-slanted safety grade glass provides protection with more comfortable viewing than vertical sashes.
- Counterbalanced sliding sash can be raised to a maximum height for easy introduction of large items.
- The radiused edge prevents the potentially dangerous practice of placing materials in this area.

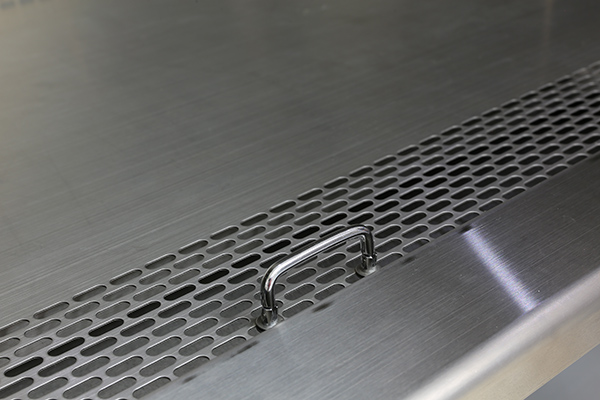

- Constructed of seamless, non-porous, autoclavable Type 304 stainless steel for working plate, one-piece side/rear walls.
| UV Decontamination | |
|
|
| Model | HFsafe-1200LCN |
| Nominal Size | 1.2 meters(4，) |
| External Dimensions with Base Stand (WxDxH) | 1323x771x2255mm (52.1"x30.4"x88.8") |
| Internal Work Area, Dimensions(WxDxH) | 1200x600x678mm (47.2"x23.6"x26.7") |
| Internal Work Area,Space | 0.72m2(7.8 sq.ft) |
| Average Airflow Velocity * | |
| Inflow | 0.53m/s(104.3fpm) |
| Downflow | 0.35m/s(68.9fpm) |
| Airflow Volume | |
| Inflow | 477m3/h(281cfm) |
| Downflow | 866m3/h(510cfm) |
| Exhaust | 477m3/h(281cfm) |
| ULPA Filter Typical Efficiency | |
| Downflow | Filters provide 99.9995% typical efficiency for particle size of 0.1 to 0.2 microns |
| Exhaust | Filters provide 99.9995% typical efficiency for particle size of 0.1 to 0.2 microns |
| Biosafety Protection Test | |
| Personnel Protection lest | Kl-Discus containment and microbiological testing is performed |
| Product Protection Test 1~8x106(three in succession) | W5CFU |
| Cross-contamination Test 1~8x106(three in succession) | <2CFU |
| Sound Emission (Typical) | |
| NSF/ANSI 49 | <62dBA |
| EN 12469 | <59dBA |
| Fluorescent Light Intensity | 800-1200 Lux (74-112 foot candles) |
| Excellent light distribution | Yes |
| RMS | <2.3 um |
| Cabinet Construction | |
| Main Body | 1.2mm(0.05") steel with white oven-baked epoxy-polyester |
| Work Zone | 1.5mm(0.06") stainless steel, type 304 |
| Side Walls | 1.5mm(0.06") stainless steel, type 304 |
| Electrical sliding windows Option | Yes |
| Window material | Hardened/laminated safey glass |
| Electrical | |
| Cabinet Full Load Amp(FLA) | 2A |
| Fuses | 10A |
| Cabinet Nominal Power | 452W |
| Optional Outlets FLA | 5A |
| Total Cabinet FLA | 7A |
| Power Supply* | |
| 220V/50HZ | Yes |
| 220V/60HZ | Yes |
| 110V/60HZ | Yes |
| Net Weight | |
| Manual Type | 225kg(496lbs) |
| Shipping Weight | |
| Manual Type | 295kg(650lbs) |
| Shipping Dimensions MaximumfW^D^H) | 1425x945x1717mm (56.1"x37.2"x67.3") |
| Shipping Volume, Maximum | 2.30m3(81.2cu.ft.) |
