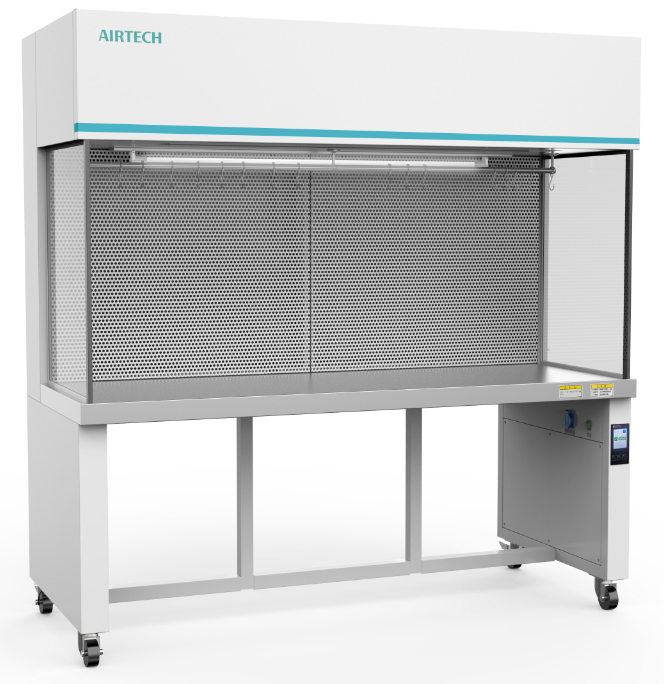

Horizental Clean Bench, Standard Type，SW-CJ series

●Comply with the requirements of China CFDA's YYT1539-2017 "Medical Clean Workbench", with Class II medical device registration certificate;

●High-definition LCD color man-machine dialogue interface, touch key operation, real-time display of wind speed, filter operating status, and provide fault alarm;

●Adjustable air supply system with high efficiency and low energy consumption; safety interlock of LED lighting and sterilization system;

●The infusion bag suspension rod specially configured for intravenous infusion is more convenient to use;

●Each clean workbench has been individually tested for safety and product performance according to the standard.

Parameters

●Comply with the requirements of China CFDA's YYT1539-2017 "Medical Clean Workbench", with Class II medical device registration certificate;

●High-definition LCD color man-machine dialogue interface, touch key operation, real-time display of wind speed, filter operating status, and provide fault alarm;

●Adjustable air supply system with high efficiency and low energy consumption; safety interlock of LED lighting and sterilization system;

●The infusion bag suspension rod specially configured for intravenous infusion is more convenient to use;

●Each clean workbench has been individually tested for safety and product performance according to the standard.

◆ LCD colorful screen display interface, soft touch key operation, air velocity 3 level adjust, and display the status of the fan, lighting and UV.

◆ Set the UV lamp reservation on and off, display fan, UV lamp, filter cumulative running time.

◆ Built-in tempered glass on both sides for easy observing.

◆ Integrative stainless steel working table corrosion-resistant, easy to clean.

◆ High grade steel with static powder coating, well corrosion resistant ability, inhibiting bacterial growth effectively.

◆ Streamline shape decrease interference of airflow.

◆ High quality swivel caster with break easy to move and fixation.

◆ Humanized pre-filters design make customers more convenient to change and clean.

◆ Interlocking lighting and sterilization systems, with spare sockets design,Short circuit protection, safe and convenient to use.

◆ Every clean bench is tested individually in according with international standard at factory for safety and performance.

Model/Item	SW-CJ-1B	SW-CJ-1C	SW-CJ-1BU	SW-CJ-1CU
Cleanliness	ISO CLASS 5
Air Velocity	0.33 m/s ± 0.03 m/s
Noise	≤62 dB(A)
Illumination	≥300 Lx
Power Supply	AC220V, 1φ, 50Hz，Optional AC110V, 1φ, 60Hz
Consumption ※	500 w	500 w	500 w	500 w
Weight	170 kg	210 kg	170 kg	210 kg
Work Dimension (W1XD1XH1)	1200 x 560 x 720 mm (47.2'' x 22.0'' x 28.3'')	1700 x 560 x 720 mm (67.0'' x 22.0'' x 28.3'')	1200 x 560 x 720 mm 47.2'' x 22.0'' x 28.3')	1700 x 560 x 720 mm (67.0'' x 22.0'' x 28.3'')
Overall Dimension (WXDXH)	1280 x 780 x 1820 mm (50.4'' x 30.7'' x 71.7'')	1780 x 780 x 1820 mm (70.1'' x 30.7'' x 71.7'')	1280 x 780 x 1820 mm (50.4'' x 30.7'' x 71.7'')	1780 x 780 x 1820 mm (70.1'' x 30.7'' x 71.7'')
Size & No.of HEPA Filter	1170 x 680 x 69 mm x1 set (46.1'' x 26.8'' x 2.7'' x1 set)	840 x 680 x 69 mm x2 sets (33.1'' x 26.8'' x 2.7'' x2 sets)	1170 x 680 x 69 mm x1 set (46.1'' x 26.8'' x 2.7'' x1 set)	840 x 680 x 69 mm x2 sets (33.1'' x 26.8'' x 2.7'' x2 sets)
Light	18 w x 1 pc	36 w x 1 pc	18 w x 1 pc		36 w x 1 pc
UV Light (optional)	-		18 w x 1 pc		36 w x 1 pc
No.of Colony	-		≤0.5cfu/Dish*0.5h
Materials	Working table: All-in-one Stainless Steel, outside cabinet: high grade steel and lacquered in ivory
Mode of Operation	Single/single side	Double/single side	Single/single side	Double/single side
