Intelligent microcomputer control system:Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.

Interlock device: The control system can real time super- vision the sterilizer chamber's temperature and pressure. Only under the safety temperature and pressure can open the sterilier's cover.Mack sure the operator's safety.

The structure of cover's opening:Using 8 rotary ex- tendable stick to improve sealing and safety performance.

Preset program: Can preset fixed program that sterilize solid body.

Memory storage system: Store the last operation pro- gram so convenient next operation.

Interface check: provide temperature and pressure check interface; convenient to check multiple position temperature measurement.

Digital display screen: Digital display screen and work- ing indicator light display running state.

Safety devices: interlock device, over-temperature and over pressure protecting system,burned protection, safety relief valve, current leakage protector and automatic fault detection.

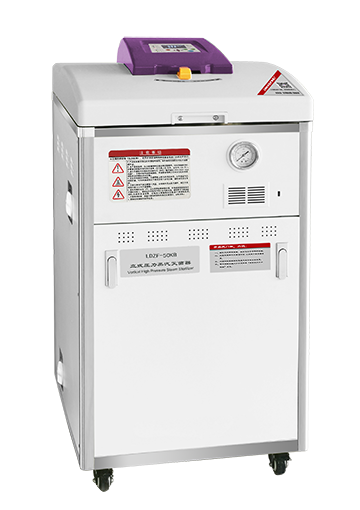

Parameter/Model	LDZF-50KB
Configuration	Semi-automatic control
The main material	Stainless steel
Volume/GW	50L/97kg
Voltage/Power	220V/3.5kW
Packingsize(L×W×Hmm)	790×670×1160
Product size(L×W×Hmm)	550×620×1070
Sterilization chamber volume(D×Hmm)	350×550
Basket Size(D×Hmm)	330×190
Time setting range	0-99 h
Rated working pressure	0.217MPa
Sterilization temperature setting range	50~134℃
