Intelligent microcomputer control system: Using LED digital control system; After steriliztion finished, sterilizer will automatic alarm and shut down.

Electric interlock device: The control system can real time supervision the sterilizer chamber's temperature and pressure. Only under the safety temperature and pressure can open the sterilizer's cover. Make sure the operator's safety.

The structure of cover's opening: Using hand wheel rotary type cover to improve sealing and safety performance.

Preset program: Can preset fixed program that sterilize

Memory storage system: Store the last operation pro- gram so convenient next operation.

Interface check: provide temperature and pressure check interface; convenient to check mutiple position temperature measurement.

Digital display screen: Digital display screen and work- ing indicator light display running state.

Safety devices: interlock device,over-temperature and over pressure protecting system, burned protection, safety relief valve, current leakage protector and automatic fault detection,

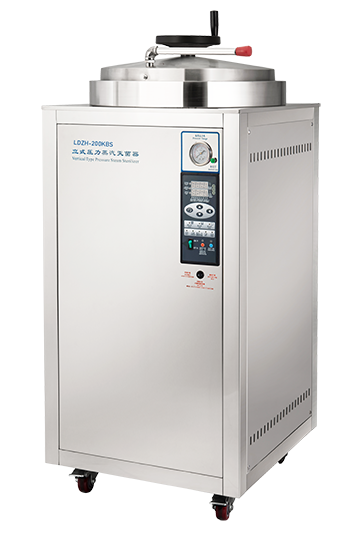

Parameter/Model	LDZH-200KBS
Configuration	Semi-automatic control
The main material	Stainless steel
Volume/GW	200L/238kg
Voltage/Power	380V/6kW
Packingsize(L×W×Hmm)	760×800×1720
Product size(L×W×Hmm)	630×700×1600
Sterilization chamber volume(D×Hmm)	500×1000
Basket Size(D×Hmm)	470×230(×4）
Time setting range	0-99 h
Rated working pressure	0.217MPa
Sterilization temperature setting range	50~134℃
