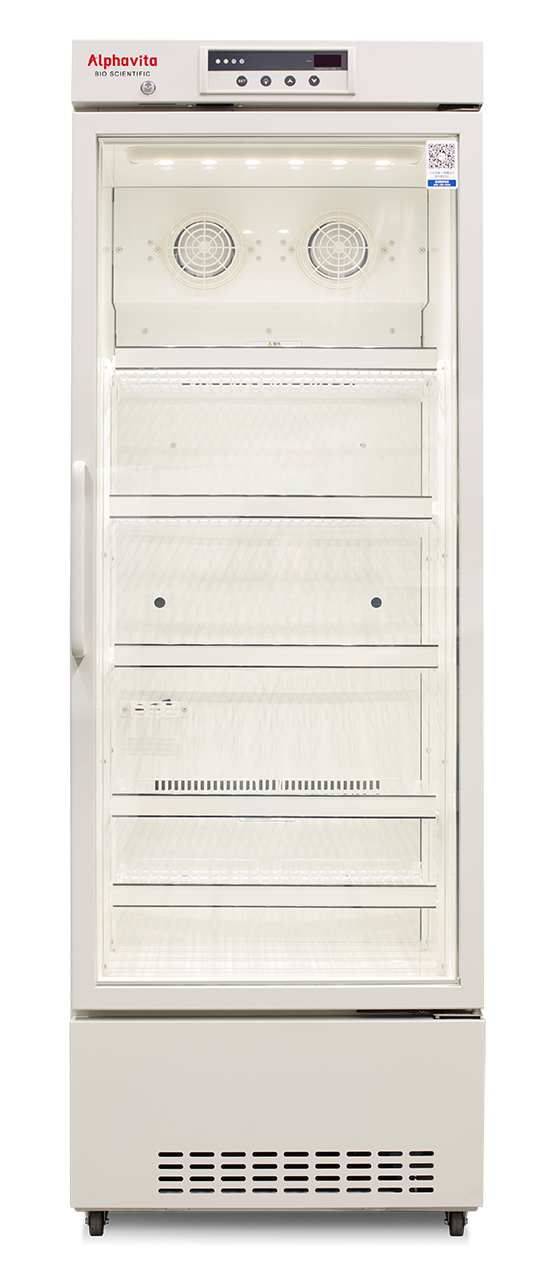

MPR-310

I. Application Scope

The refrigerator serves for preserving human test samples, medicines, insulin, vaccines, biological products, reagents, etc.

II. Key Indexes

1. Working Temperature Range: 2℃ ~ 8℃ (Ambient temperature: 5℃ ~ 35℃).

2. Available Volume: 387 L.

3. External Dimensions (W × D × H): 660*650*1970 mm.

4. Internal Dimensions (W × D × H): 570*498*1405 mm.

5. Net Weight: 126 Kg.

6. Rated Power Input: 295W.

7. Exterior Material: Painted steel.

8. Interior Material: Stainless steel.

9. There is 1 outer door ( heat-reflecting film and 1 lock).

10. Compressor: Fully sealed type.

11. Refrigerant: R134a (Environmentally friendly).

12. Safety Devices: High/low temperature alarm, prevention device against excessive temperature rise and door-opening alarm.

13. Standard Configurations: 1 LED lamp, 5 net racks with 5 layers in each, 1 sets of keys and 1 cable for MTR-0621LH.

14. Power Supply (V/Hz): Single-phase source at 220 V/50 Hz/60hz.

15. Temperature Control Panel: Digital temperature display.

16. Equipped with casters and locking device.

17. Inspection Hole: 1 hole (with a diameter of 30 mm on the left side).

III. Product Qualification

License for Medical Apparatus and Instrument Manufacturer

Registration Certificate for Medical Device in People’s Republic of China

ISO13485 Medical Device Quality Management System Certification

ISO9001 Quality Management System Certification

ISO14001 Environment Management System Certification

ISO45001 Occupational Health System Certification

IV. Other Parameters

1. The refrigerator is controlled by microcomputer; temperature is displayed digitally; the adjustable increment is 0.1℃;

2. The refrigerator adopts the air cooling system; the temperature fluctuation range inside is ±3℃; the temperature inside can be controlled within the range from 2℃ to 8℃ by adjusting the set temperature;

3. The refrigerator is designed with heating glass door which can effectively keep frosting away, improve its insulation performance;

4. The refrigerator has multiple fault alarms and can realize high/low temperature alarm, sensor fault alarm, door-opening alarm; there are two alarm modes of buzzer alarm and light flashing alarm;

5. Door is with locks so as to prevent random opening;

6. The famous brand compressor adopted is with reliable quality, stable performance and long service life;

7. The net rack with price tag meets users’ different demands;

8. A testing port is made on the side of cabinet wall to facilitate tests by users;

9. The refrigerator is installed with fluorescent lamp for illumination so that reagents inside are clear and conspicuous;

10. The refrigerator is designed with casters to facilitate its mobility and supporting legs for convenient fixing;

11. Condensed water is automatically evaporated after collection so as to avoid the trouble for manual disposal;

12. The refrigerator is designed with a wide voltage scope from 198V to 242V so that it is applicable in areas with unstable voltage.
