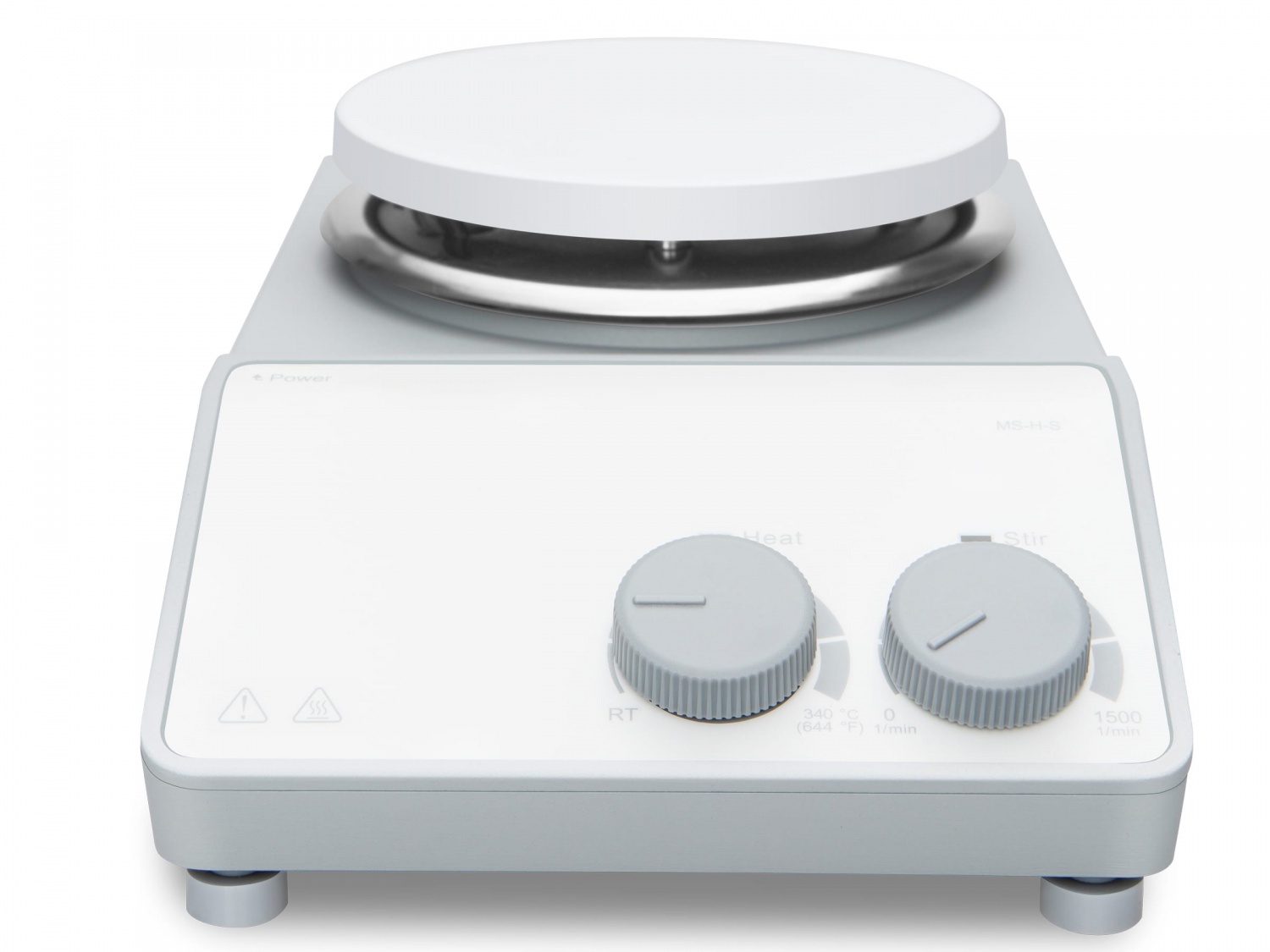

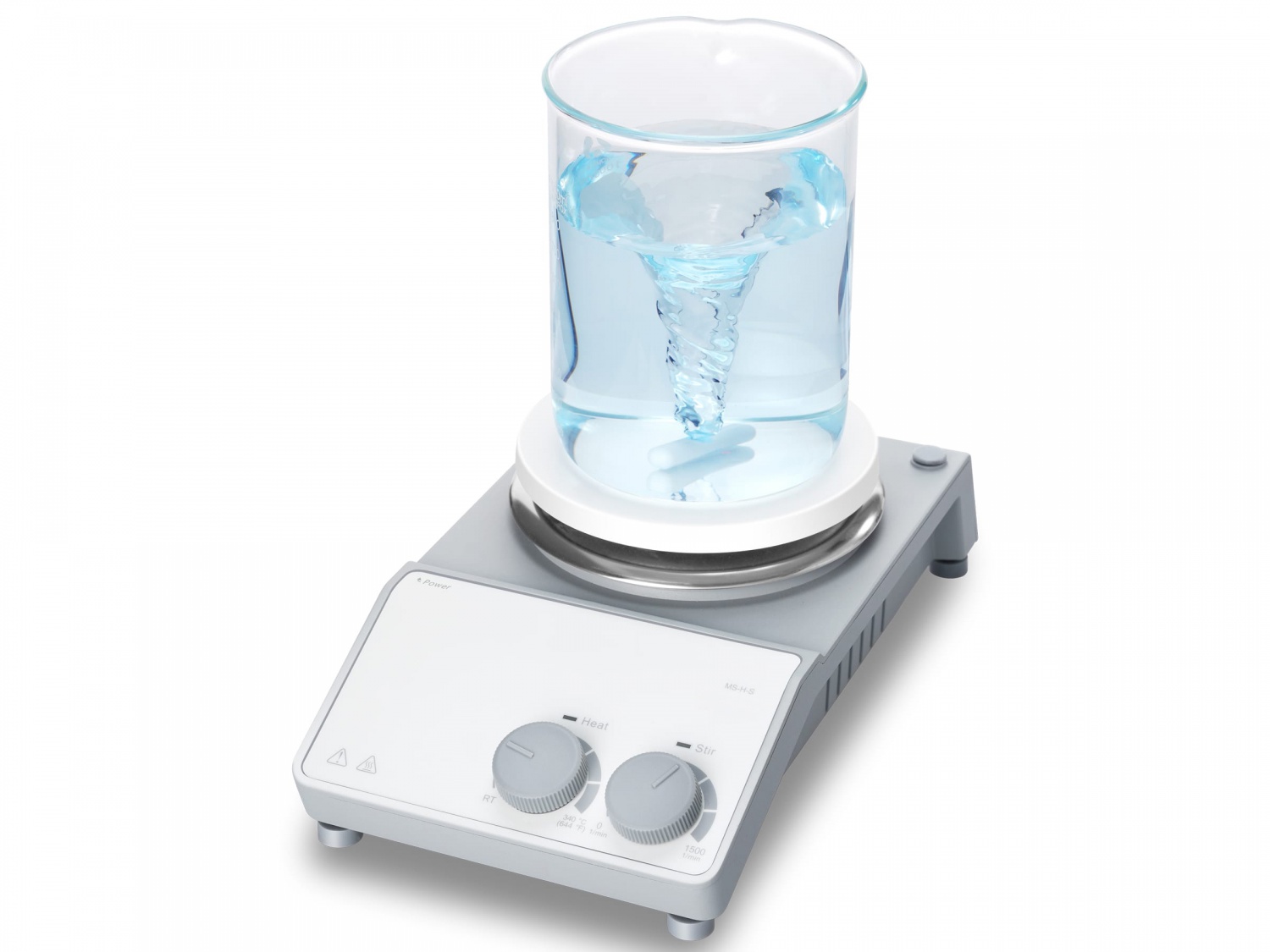

MS-H-S

Key Features

•   Maintenance free brushless DC motor
•   Max. temperature to 340°C
•   Stirring speed up to 1500 rpm
•   Stainless steel work plate with ceramic coating provides good chemical-resistant performance
•   Safety circuits provide overheating protection
•   A wide variety of accessories are available

Parameters

Specification
Order Info.

Specifications	MS-H-S
Work plate dimension	φ135mm(5 inch)
Work plate material	stainless steel cover with ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	550W
Heating output	500W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity[H2O]	20L
Max. magnetic bar[length]	80mm
Speed range	0-1500rpm resolution±1rpm
Speed display	Scale
Temperature display	Scale
Heating temperature range	Room temp.-340°C
Over temperature protection	420°C
Temperature display accuracy	±0.5°C
Protection class	IP42
Dimension[WxDxH]	160×280×85mm
Weight	2.8kg
Permissible ambient temperature and humidity	5-40°C, 80%RH

Cat. No.	P/N	Descriptions	Power supply
8030211010	MS-H-S	Classic Hotplate Magnetic Stirrer，stainless steel with ceramic coated hotplate，heating temperature up to 340°C	USA plug,100V-120V/50Hz/60Hz
			Cn plug,200V-240V/50Hz/60Hz
			Euro plug,200V-240V/50Hz/60Hz
			UK plug,200V-240V/50Hz/60Hz
