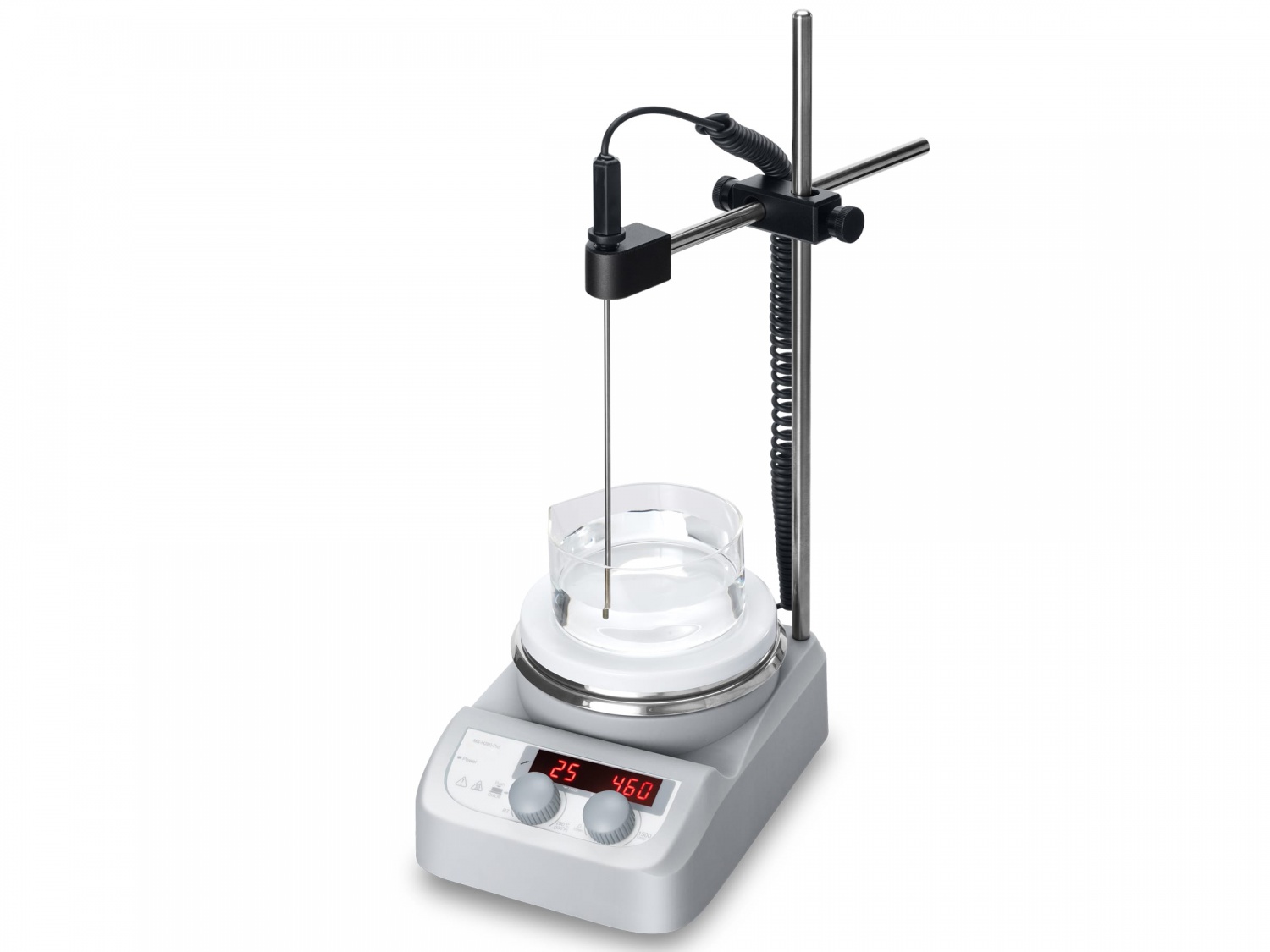

MS-H280-Pro

Key Features

•   Digital temperature control with max. temperature up to 280°C
•   Digital speed control with max. speed up to 1500rpm
•  Stainless steel work plate with ceramic coating provides good chemical resistant performance
•   External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.5°C
•   LED display shows temperature and speed
•   The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off

Parameters

Specification
Order Info.

Specifications	MS-H280-Pro
Work plate Dimension	φ135mm(5 inch)
Work plate material	stainless steel cover with ceramic
Motor type	Brushless DC motor
Motor rating input	5W
Motor rating output	3W
Power	515W
Heating output	500W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity[H2O]	3L
Max. magnetic bar[length]	50mm
Speed range	200-1500rpm
Speed display	LED
Temperature display	LED
Speed display resolution	±1rpm
Heating temperature range	Room temp.-280, increment 1°C
Control accuracy of work plate	±1°C(<100°C) ±1%(>100°C)
Over heat Protection	320°C
Temperature display accuracy	±1°C
External temperature sensor	PT1000 (accuracy ±0.5°C)
"Hot" warning	50°C
Protection class	IP21
Dimension [W x D x H]	150×260×80mm
Weight	1.8kg
Permissible ambient temperature and humidity	5-40℃ 80%RH

Cat. No.	P/N	Descriptions	Power supply
8030101212	MS-H280-Pro	Double LED Digital Hotplate Magnetic Stirrer，stainless steel with ceramic coated hotplate，heating temperature up to 280°C	USA plug,100V-120V/50Hz/60Hz
			Cn plug, 200V-240V/50Hz/60Hz
			Euro plug, 200V-240V/50Hz/60Hz
			UK plug, 200V-240V/50Hz/60Hz
MS-H280-Pro 8030101212 +PT1000A 18900016 +support clamp 18900148		MS-H280-Pro package

Cat. No.	P/N	Descriptions
18100990		Protective cover use with MS-H280-Pro
18900016	PT1000-A	Temperature sensor for digital hotplate models,length of 230mm, used for MS-H280-Pro, MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S
18900136	PT1000-B	Temperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro
18900084	PT1000-C	Temperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro
18900148		Support clamp of PT1000, use with MS-H280-Pro and MS-H380-Pro
18900294		Set includs support clamp of PT1000, use with MS-H280-Pro and PT1000Temperature sensor
18101006		Reaction block for 50ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101007		Reaction block for 100ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101008		Reaction block for 250ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101009		Reaction block for 500ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18900259		Reaction block for 1000ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18900260		Reaction block for 2000ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18900006	MSBAR10	Stirrer bar（10mm x 6mm），1pc/pk
18900007	MSBAR15	Stirrer bar（15mm x 8mm），1pc/pk
18900008	MSBAR20	Stirrer bar（20mm x 8mm），1pc/pk
18900009	MSBAR25	Stirrer bar（25mm x 8mm），1pc/pk
12500005	MSBAR30	Stirrer bar（30mm x 6mm），1pc/pk
18900011	MSBAR40	Stirrer bar（40mm x 8mm），1pc/pk
12500004	MSBAR50	Stirrer bar（50mm x 8mm），1pc/pk
18900015	MARRM	Stirrer bar remover, length of 200mm, 1pc/pk
