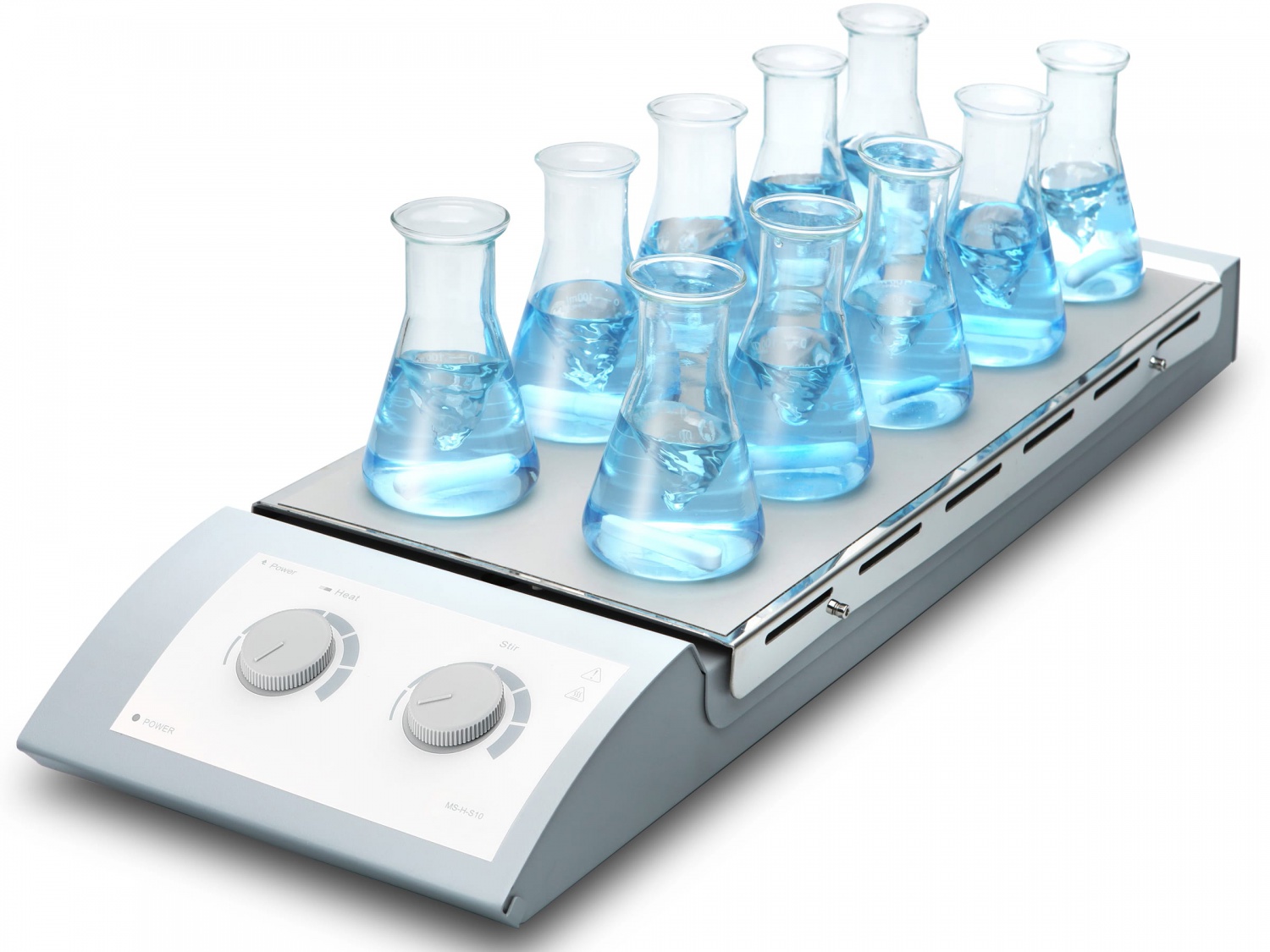

MS-M-S10

Key Features

•   Maintenance-free brushless DC motor
•   Speed range of 0-1100rpm
•   Stainless steel work plate covered with silicone cushion, provides excellent performance of skid resistance

Parameters

Specification
Order Info.

Specifications	MS-M-S10
Work plate Dimension	180×450mm
Work plate material	Stainless steel with silicone coating
Motor type	Brushless DC motor
Motor input power	12W
Motor output power	4W
Power	20W
Voltage	100-120/200-240V,50/60Hz
Stirring positions	10
Max. stirring quantity[H2O]	0.4LX10
Max. magnetic bar[length]	40mm
Speed range	0-1100rpm
Speed display	Scale
Protection class	IP21
Dimension[WxDxH]	622×205×65mm
Weight	3.2kg
Permissible ambient temperature and humidity	5-40°C, 80%RH

Cat. No.	P/N	Descriptions	Power supply
8030140013	MS-M-S10	10-Channel Classic Magnetic Stirrer, stainless steel plate with silicone film	USA plug,100V-120V/50Hz/60Hz
			Cn plug,200V-240V/50Hz/60Hz
			Euro plug,200V-240V/50Hz/60Hz
			UK plug,200V-240V/50Hz/60Hz

Accessories
Cat. No.	P/N	Descriptions
18900006	MSBAR10	Stirrer bar（10mm x 6mm），1pc/pk
18900007	MSBAR15	Stirrer bar（15mm x 8mm），1pc/pk
18900008	MSBAR20	Stirrer bar（20mm x 8mm），1pc/pk
18900009	MSBAR25	Stirrer bar（25mm x 8mm），1pc/pk
12500005	MSBAR30	Stirrer bar（30mm x 6mm），1pc/pk
18900011	MSBAR40	Stirrer bar（40mm x 8mm），1pc/pk
