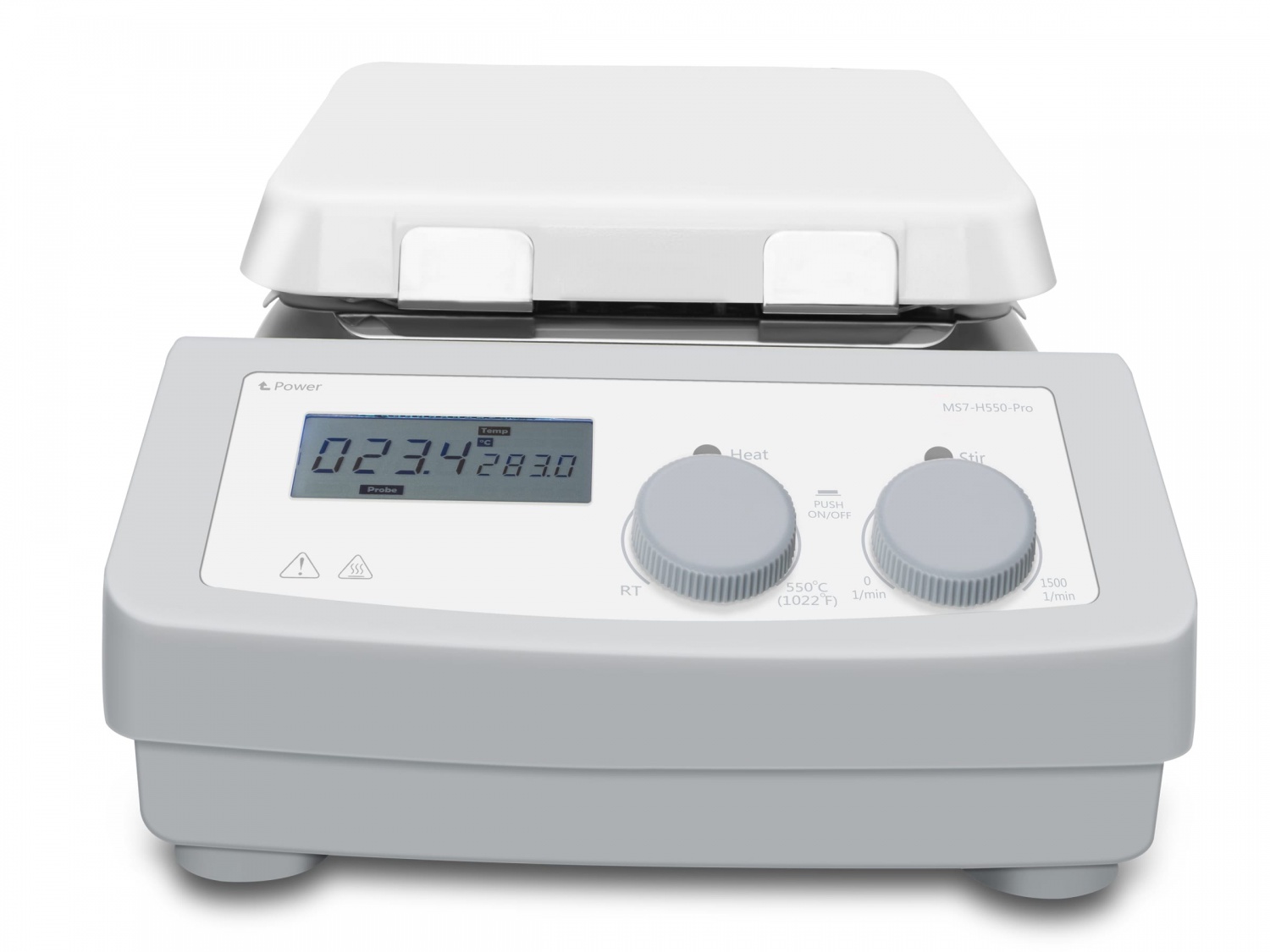

MS7-H550-Pro
Key Features
• LCD display for precise monitoring of speed and temperature
• Built-in PID controller ensures safe heating of the medium with overheating protection
• Max. heating plate temperature 550°C
• Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer

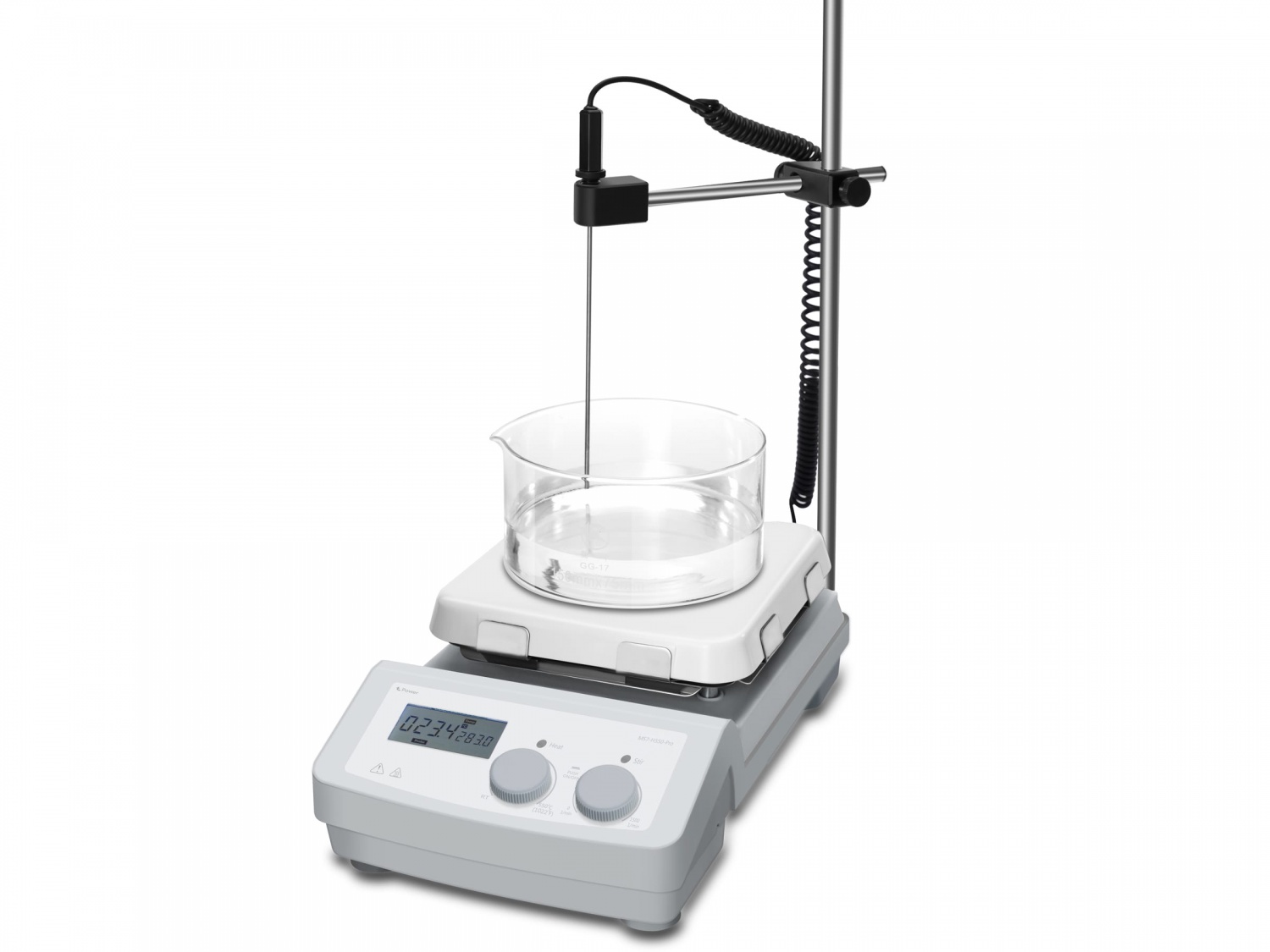

• External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C
• Digital speed controlling, max. speed at 1500rpm
• Outstanding brushless DC motor enables more stirring power
• Two rotating knobs enable easy adjustment of speed and temperature
• The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
• Remote function provides PC control and data transmission
- Parameters
Key Features
• LCD display for precise monitoring of speed and temperature
• Built-in PID controller ensures safe heating of the medium with overheating protection
• Max. heating plate temperature 550°C
• Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
• External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C
• Digital speed controlling, max. speed at 1500rpm
• Outstanding brushless DC motor enables more stirring power
• Two rotating knobs enable easy adjustment of speed and temperature
• The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
• Remote function provides PC control and data transmission
| Specifications | MS7-H550-Pro |
| Work plate Dimension [W x D] | 184x184mm (7 inch) |
| Work plate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 1050W |
| Heating output | 1000W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity, [H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 100-1500rpm resolution ±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-550°C,increment 1°C |
| Temperature control accuracy | ±1 °C (<100°C) ±1%(>100°C) |
| Overheating protection | 580°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| "Hot" warning | 50°C |
| Data connector | RS232 |
| Protection class | IP21 |
| Dimension [WxDxH] | 215x360x112mm |
| Weight | 5.3kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
| Cat. No. | P/N | Descriptions | Power supply |
| 8030122111 | MS7-H550-Pro | LCD Digital 7’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate，heating temperature up to 550°C,with PT1000 for free (18900016),need to buy support clamp 18900017 | USA plug,100V-120V/50Hz/60Hz |
| Cn plug,200V-240V/50Hz/60Hz | |||
| Euro plug,200V-240V/50Hz/60Hz | |||
| UK plug,200V-240V/50Hz/60Hz |
| Accessories | |||
| Cat. No. | P/N | Descriptions | |
| 18900002 | MS 135.2 | Red quarter pie, 11 holes，4 ml reaction vessel，Ø15.2mm，20mm depth, used with MS135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro, MS7-H550-S | |
| 18900003 | MS 135.3 | Purple quarter pie, 4 holes，20 ml reaction vessel，Ø28mm，24mm depth, used with MS135.1 and MS 135.8 ,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S | |
| 18900004 | MS 135.4 | Blue quarter pie, 4 holes, 30 ml reaction vessel，Ø28mm，30mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S | |
| 18900005 | MS 135.5 | Black quarter pie, 4 holes, 40 ml reaction vessel，Ø28mm，43mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S | |
| 18900048 | MS 135.6 | Green quarter pie，6 holes, 8ml reaction vessel，Ø17.8mm，26mm depth, used with MS135.1 and MS135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S | |
| 18900049 | MS 135.7 | Golden quarter pie，4 holes, 16ml reaction vessel，Ø21.6mm，31.7mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S | |
| 18900006 | MSBAR10 | Stirrer bar（10mm x 6mm），1pc/pk | |
| 18900007 | MSBAR15 | Stirrer bar（15mm x 8mm），1pc/pk | |
| 18900008 | MSBAR20 | Stirrer bar（20mm x 8mm），1pc/pk | |
| 18900009 | MSBAR25 | Stirrer bar（25mm x 8mm），1pc/pk | |
| 12500005 | MSBAR30 | Stirrer bar（30mm x 6mm），1pc/pk | |
| 18900011 | MSBAR40 | Stirrer bar（40mm x 8mm），1pc/pk | |
| 12500004 | MSBAR50 | Stirrer bar（50mm x 8mm），1pc/pk | |
| 18900013 | MSBAR65 | Stirrer bar（65mm x 8mm），1pc/pk | |
| 18900014 | MSBAR80 | Stirrer bar（80mm x 13mm)，1pc/pk | |
| 18900016 | PT1000-A | Temperature sensor for digital hotplate models,length of 230mm, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro | |
| 18900136 | PT1000-B | Temperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro | |
| 18900084 | PT1000-C | Temperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro | |
| 18900017 | Support clamp of PT1000 | ||
| 18900293 | Set includs support clamp of PT1000 and PT1000 Temperature sensor | ||
