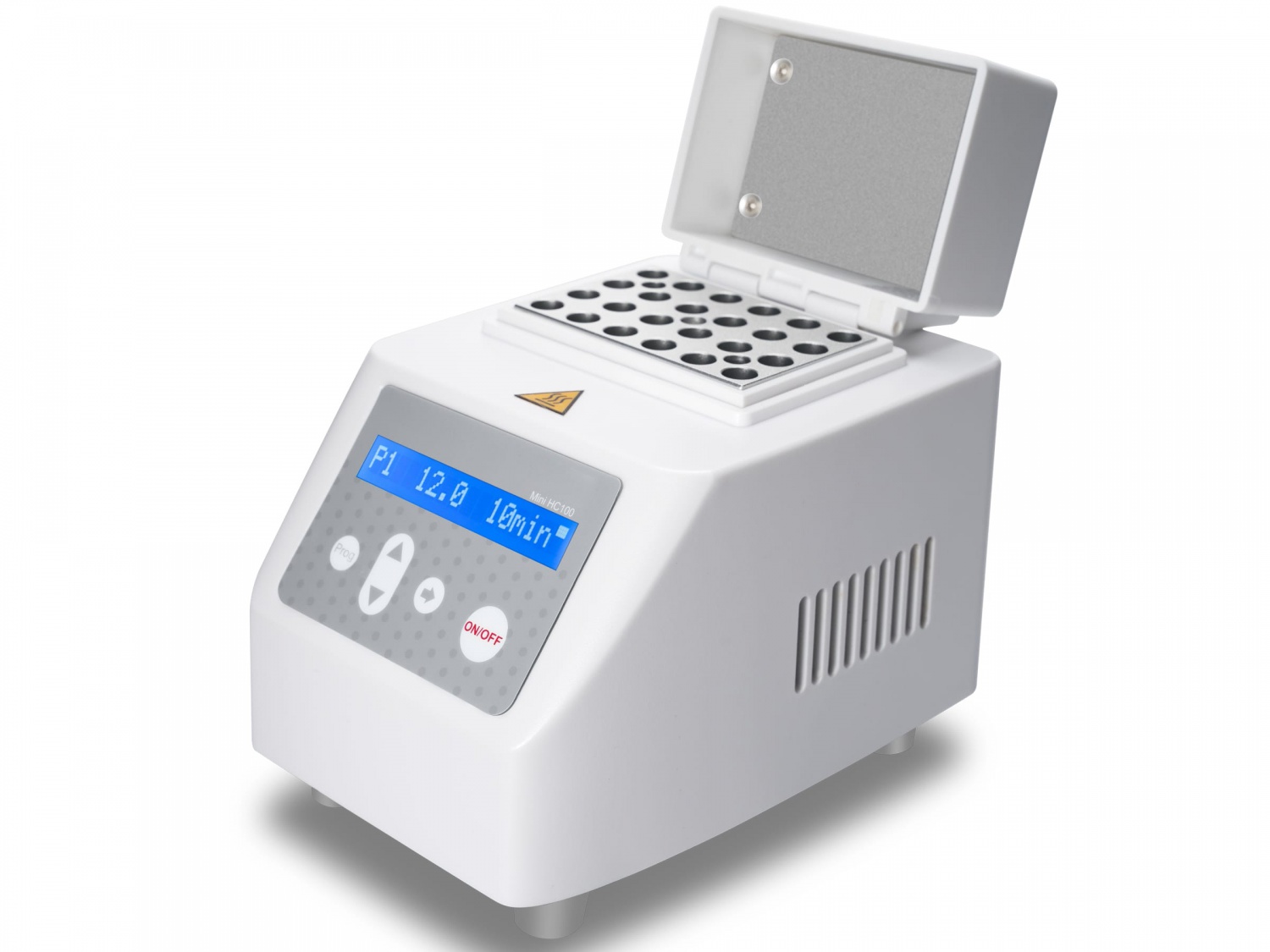

Mini HC100
Features:
• Light in weight
• LCD display of both temperature and time.
• Rapid calibration support
• Overheating protection.
• Optional blocks with different capacities are available.
• Safe and stable.
• USB interface to save the data
• Mini HCL100 with hot lid provided to preserve the generated heat.
- Parameters
Features:
• Light in weight
• LCD display of both temperature and time.
• Rapid calibration support
• Overheating protection.
• Optional blocks with different capacities are available.
• Safe and stable.
• USB interface to save the data
• Mini HCL100 with hot lid provided to preserve the generated heat.
| Specifications | Mini HC100 |
| Display | LCD |
| Temperature setting range[℃] | 0-100 |
| Temperature range [℃] | Room temperature -23~100 |
| Temperature control accuracy[℃] | ±0.5 |
| Temperature display accuracy[℃] | 0.1 |
| Minimum time taken for heating(25℃-100℃） | ≤20min |
| Max. Heating Rate | 8°C /min |
| Max. Cooling Rate | 3°C /min |
| Time setting range | 0-999min/0-999sec |
| No. of programs in memory | 9(2steps for each） |
| Rapid calibration | Support |
| USB interface | Support |
| Error code reminder | Support |
| External dimension [mm] | 110x162x140 |
| Overall weight [kg] | ≤1 |
| Power supply | DC12V,100-240V, 50/60Hz |
| Power | 60W |
| Operating temperature[℃] | +10-40 |
| Operating humidity [% RH] | ≤80 |
| at. No. | P/N | Descriptions | Power supply |
| 5042102111 | MiniHC100 | LCD digital mini dry bath,with heating and cooling, one 1 pcs heating block for free (select a size below) | USA plug,100V-120V/50Hz/60Hz |
| Cn plug, 200V-240V/50Hz/60Hz | |||
| Euro plug, 200V-240V/50Hz/60Hz | |||
| UK plug, 200V-240V/50Hz/60Hz |
| Accessories of Mini dry bath | |
| Cat. No. | Descriptions |
| 18900414 | Heating block, used for 0.2mL tubes, 40 holes |
| 18900415 | Heating block, used for 0.5mL tubes, 24 holes |
| 18900416 | Heating block, used for 1.5mL tubes, 15 holes |
| 18900428 | Heating block, used for 2mL tubes, 15 holes |
| 18900426 | Heating block, used for 15mL tubes, 4 holes |
| 18900427 | Heating block, used for 50ml tubes, 2 holes |
