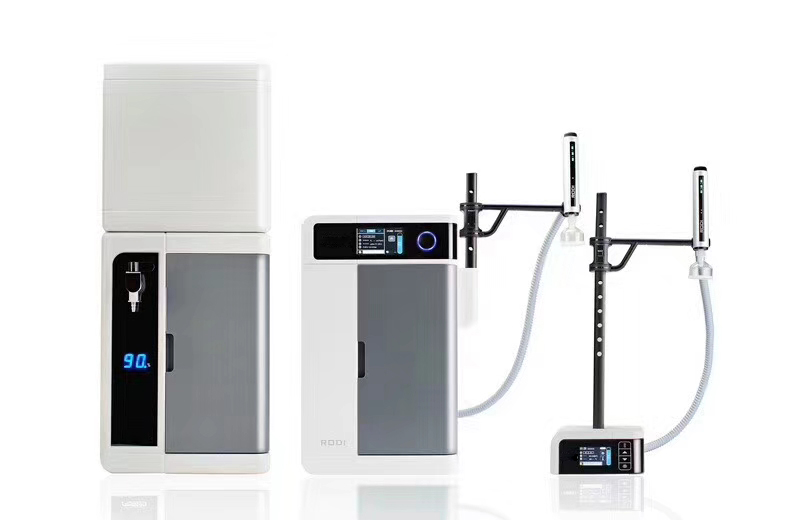

RODI-220A1 RODI-220B1

RODI is a laboratory water purification system with intelligent and humanized design. All system modularization, high integration, high space utilization, with the Internet of things application, full digital network tracking and management. Filter column chip management with intelligent identification and the product information can be traced back. This high quality purification system was builde

Parameters

Cloud service of the IOT
With WiFi/GPRS dual-mode wireles Internet access function, and combined with cloud service platform to realize remote network data tracking and management, operation/fault analysis, and the formation of daily use statistics and reports.
Comprehensive water quality monitoring
On line monitoring of conductivity and TOC of ultra pure water can obtain the change of water quality in each purification stage in a more comprehensive and real-time way.
Chip management of filter column
The filter column adopts intelligent chip management to prevent leakage/misalignment and make it traceable.
Highly intelligent
Modularization
100% Consumables replaced by DIY
Diversified water operation
①Remote water dispenser
②Multiple water dispenser
③Four different flow rates adjustable
④Support foot switch and quantitative water dispense
⑤Fetch water through hand switch
Visual human-computer interface
①4.3’ color touchscreen
②right and limit classification manage
③list menu and guided interface
④Polychromatic light strip
Comprehensive safety protection
double leakage protection and system process protection.

Model	*RODI*
Feed water type	Municipal tap water, 5-40℃, 1-6 bar
Water quality	pure water——Conductivity＜5μs/cm@25℃^①, Mw＞100 Dalton organic matter removal rate＞99%（other index meets the national standard of GB6682-III level） Ultra pure water——Resistivity≥18.2MΩ.cm@25℃，heavy metal ions (ppb)＜0.01ppb, TOC< 5ppb，Bacteria< 0.01cfu/ml^②，Particle(＞0.2μm)＜1 Particulates/ml^②, Pyrogen< 0.001 Eu/ml^③，DNases< 4 pg/ml^③，RNases< 1pg/ml^③, Protease＜0.15μg/ml^② Meet the ASTM D1193-2006/GB11446.1-2013/GB33087-2016/GB6682-2008 Type I water standard
Flow rate	dropwise-2LPM
TOC monitoring range	1-999ppb
Maximum reserves	40L
Accuracy of quantitative water dispense	±1%
Voltage	AC100-240V，50Hz
Power	100W
Product Dimension	Pretreatment-water tank integrated unit：339×410×904mm（W×H×D） RODI Main Unit: 423×445×280mm（W×H×D） Remote Water Dispenser Station: 200×190×618mm(W×H×D)
Deadweight	Pretreatment-water tank integrated unit：15kg RODI Main Unit:24kg Remote Water Dispenser Station:6kg

① Typical value

② Use built-in ultrafiltration or terminal microfilter, follow correct system maintenance and sampling conditions

③ Use built-in or terminal ultrafilter, follow correct system maintenance and sampling conditions

Primary pure water
Better than GB/T6682-2008 Type III. Used for regular reagent preparation, buffer and medium solution preparation, glass cleaning, microbiological analysis , regular chemistry and qualitative analysis, water supply for autoclave sterillizer, cleaning machine, automatic biochemical analyzer, immune analyzer, etc.
Ultrapure Water
Analytical experiment such as HPLC, ICP-MS, AAS, ect.
culture precise tissue cells, strict molecular biology (nucleic acid analysis, sequencing, PCR and electrophoresis)
