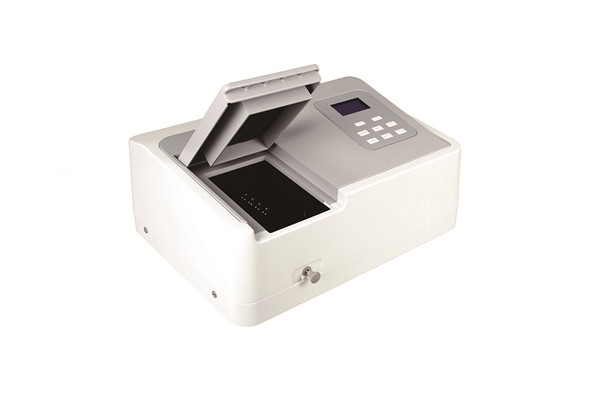

SP-V1000
Key Features
• User Friendly Operation and Information Rich LCD Display: The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.
• On-Board Data Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.
• Data can be restored after a sudden power failure.
• Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.
• PC control through application software: The spectrophotometer is fully equipped and capable of executing all functions in stand-alone mode. The optional application software 'Wave Professional' provides computer control for the spectrophotometer(through the built-in USB port), apart from other functions such as spectrum scan, Time scan(kinetics), multiwavelength scanning & Nucleic Acid /Protein measurement. (SP-V1100/SP-UV1100)
• Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available.
- Parameters
Key Features
• User Friendly Operation and Information Rich LCD Display: The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.
• On-Board Data Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.
• Data can be restored after a sudden power failure.
• Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.
• PC control through application software: The spectrophotometer is fully equipped and capable of executing all functions in stand-alone mode. The optional application software 'Wave Professional' provides computer control for the spectrophotometer(through the built-in USB port), apart from other functions such as spectrum scan, Time scan(kinetics), multiwavelength scanning & Nucleic Acid /Protein measurement. (SP-V1100/SP-UV1100)
• Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available.
| Specifications | SP-V1000 |
| Optical Systen | Single Beam |
| Light Source | Tungsten lamp |
| Spectral Bandwidth | 4.0nm |
| Wavelength Range | 325-1000nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1nm |
| Photometric Range | -0.3-3.0A， 0-200%T |
| Photometric Accuracy | ±0.003A@0.5A, ±0.006A@1.0A, ±0.5%T@100%T |
| Photometric Repeatability | ≤0.0015A@0.5A, ≤0.003A@1.0A, ≤0.25%T@100%T |
| Stability | ≤0.002A/h @500nm (after preheat 2 hours) |
| Stray Light | ≤0.2%T@360nm |
| Sample Compartment | 4-position,10mm pathlength cuvette |
| Display | LCD |
| Output | USB Port&Parallel Port (Printer) |
| Power | 110/220VAC, 50/60Hz,80W |
| Dimension (L×W×H) | 490×360×210mm |
| Weight | 12kg |
| Cat. No. | P/N | Descriptions | Power supply | |
| 4010210100 | SP-V1000 | 325~1000nm Tungsten lamp, including 4 glass square cuvettes (package contain) | 110/220 V AC, 50/60 Hz, 80 W | |
| Accessories of Spectrophotometer | ||||
| Cat. No. | Descriptions | |||
| 18900331 | 4-cell holder for 10mm squ.cuvette | |||
| 18900332 | 4-cell holder for 10mm to 50mm squ.cuvette(A) | |||
| 18900333 | 4-cell holder for up to 100mm squ.cuvette(A) | |||
| 18900334 | cylindrical cell holder (ø16mm) (A) | |||
| 18900335 | 10mm water-jacketed 1-cell holder (A) | |||
| 18900336 | 10mm water-jacketed 4-cell holder (A) | |||
| 18900337 | Micro cell holder | |||
| 18900338 | Test tube holder (ø8-Ø22mm)(A) | |||
| 18900339 | Solid sample holder (δ1.5mm--3mm，1-POSITION)(A) | |||
| 18900340 | 8-position auto cell changer | |||
| 18900341 | 12V20W Halogen lamp（PHILIPS） | |||
| 18900342 | MILAS DEUTERIUM LAMP10V300mA 30W | |||
| 18900364 | Professional software | |||
| 18900368 | Square Cvettes.Glass 10mm , set/4 pcs | |||
| 18900369 | Square Cvettes.Glass 20mm, set/4 pcs | |||
| 18900370 | Square Cvettes.Glass 30mm, set/4 pcs | |||
| 18900371 | Square Cvettes.Glass 50mm, set/4 pcs | |||
| 18900372 | Square Cvettes.Glass 100mm, set/4 pcs | |||
| 18900373 | Square Cvettes.Glass 1mm, set/4 pcs | |||
| 18900374 | Square Cvettes.Glass 2mm, set/4 pcs | |||
| 18900375 | Square Cvettes.Glass 3mm, set/4 pcs | |||
| 18900376 | Square Cvettes.Glass 5mm, set/4 pcs | |||
| 18900377 | Square Cvettes.Quartz 10mm, set/2 pcs | |||
| 18900378 | Square Cvettes.Quartz 20mm, set/2 pcs | |||
| 18900379 | Square Cvettes.Quartz 30mm, set/2 pcs | |||
| 18900380 | Square Cvettes.Quartz 50mm, set/2 pcs | |||
| 18900381 | Square Cvettes.Quartz 100mm, set/2 pcs | |||
| 18900382 | Square Cvettes.Quartz 1mm, set/2 pcs | |||
| 18900383 | Square Cvettes.Quartz 2mm, set/2 pcs | |||
| 18900384 | Square Cvettes.Quartz 3mm, set/2 pcs | |||
| 18900385 | Square Cvettes.Quartz 5mm, set/2 pcs | |||
