- Parameters

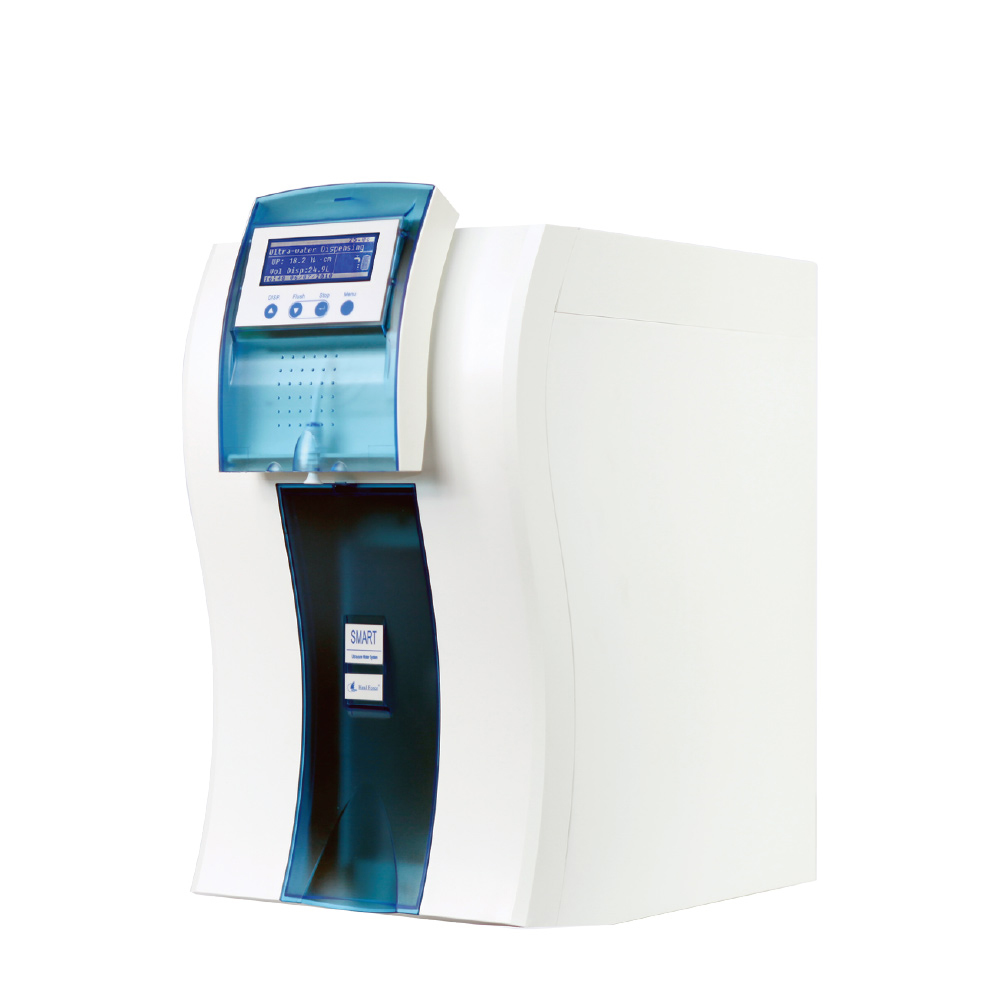

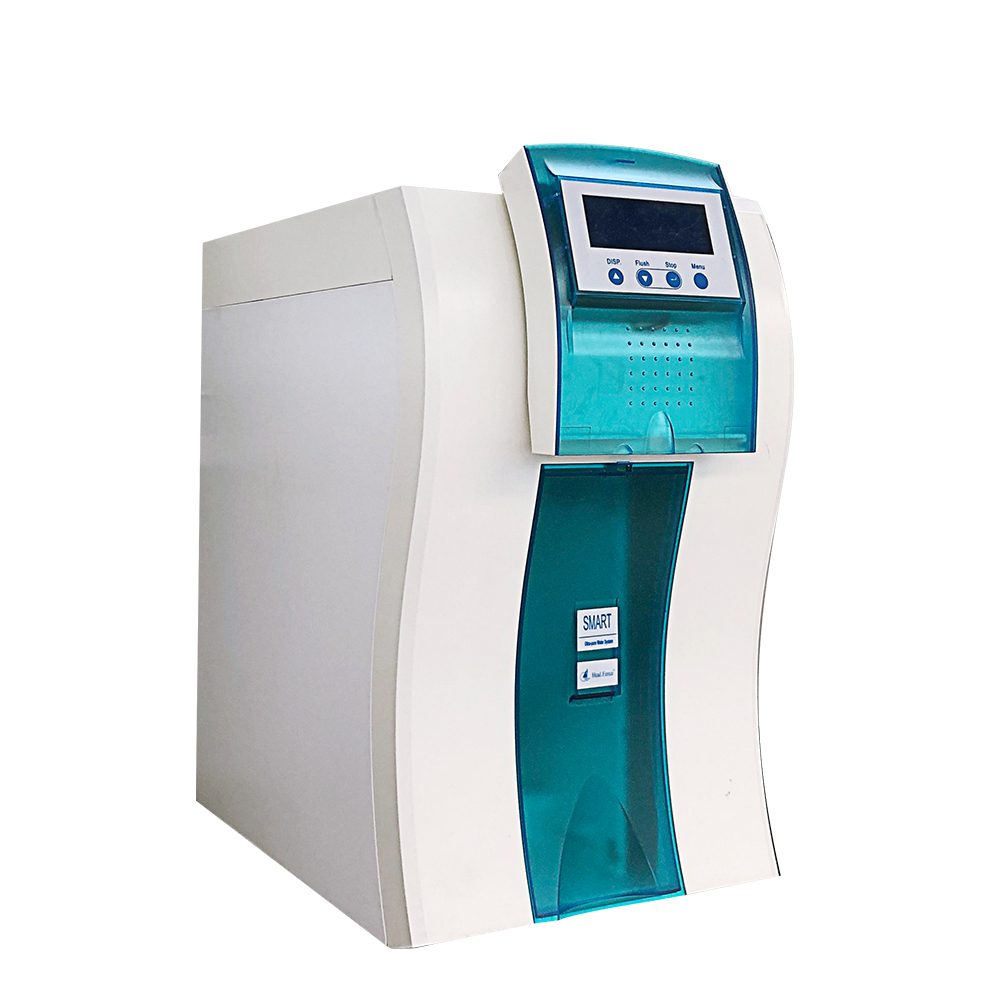

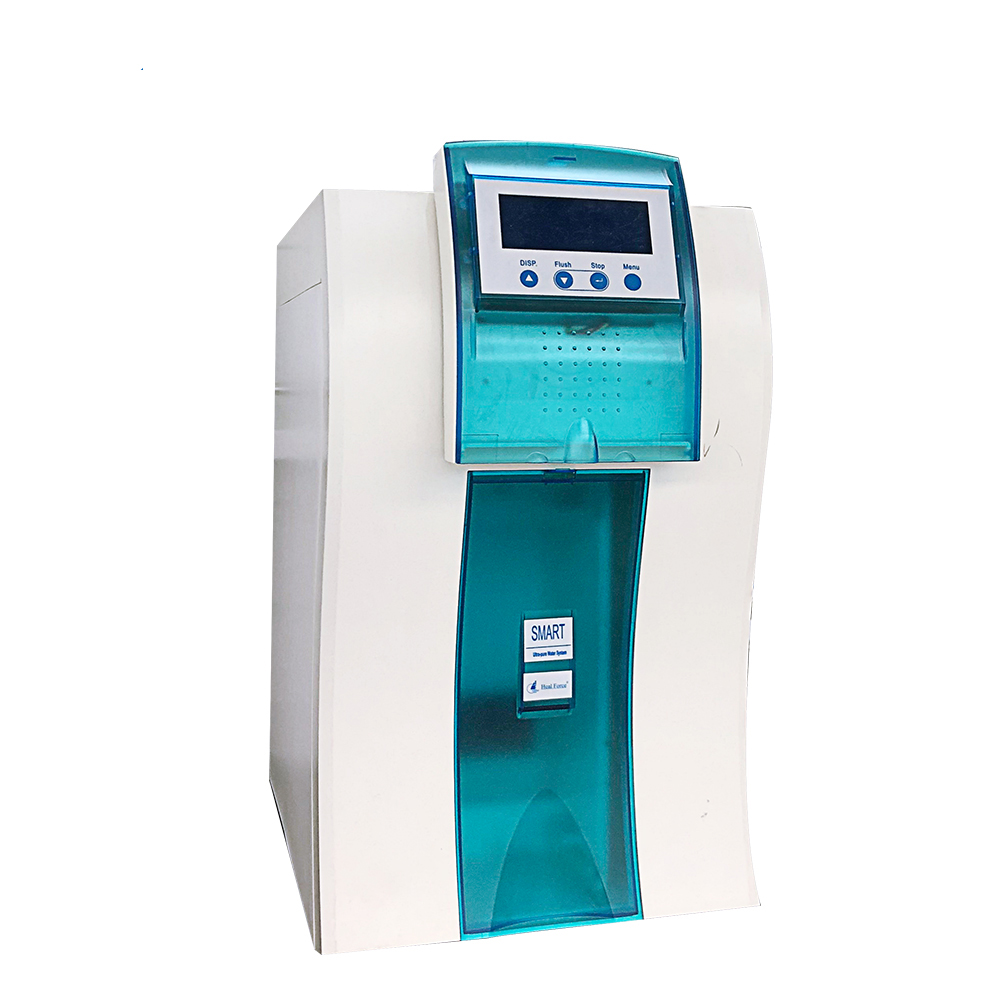

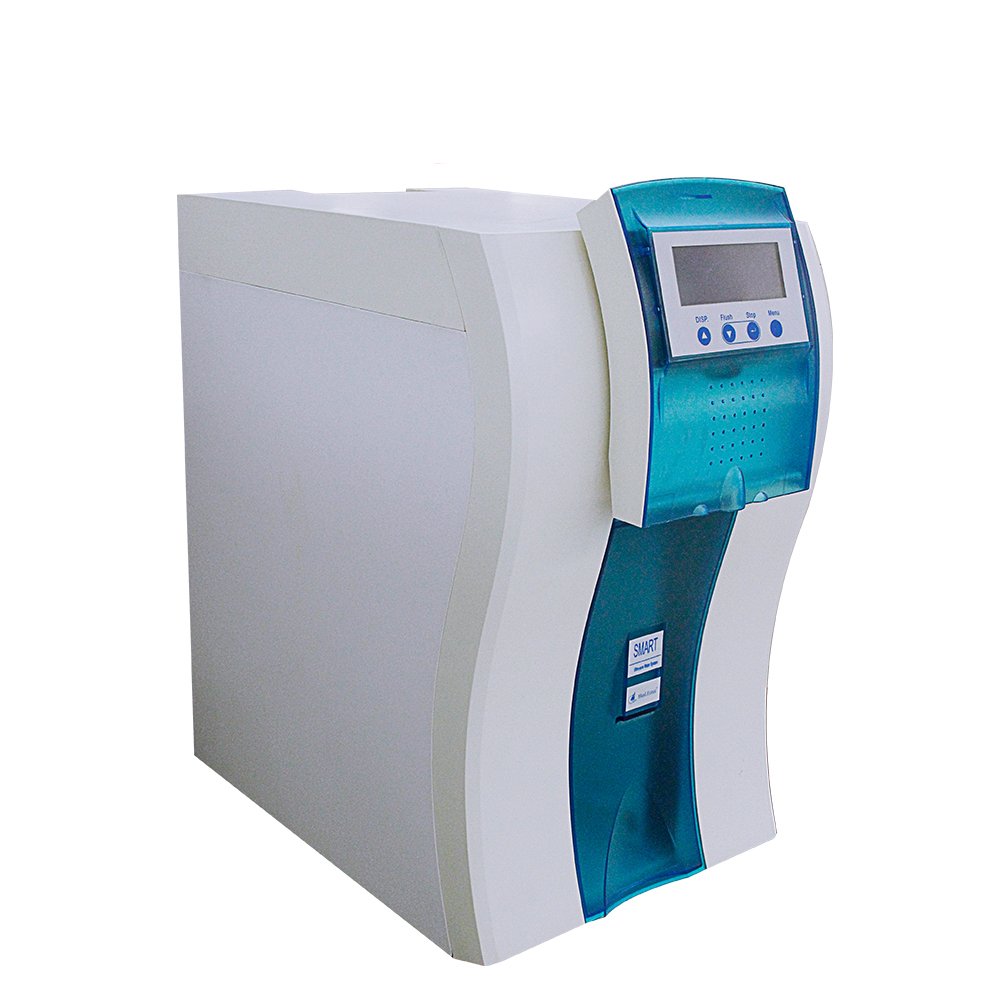

The Smart N system is a compact solution that combinesthe production of pure water and ultrapure water in a singleunit — eliminating the need for a pretreatment stageupstream of the ultrapure water system.

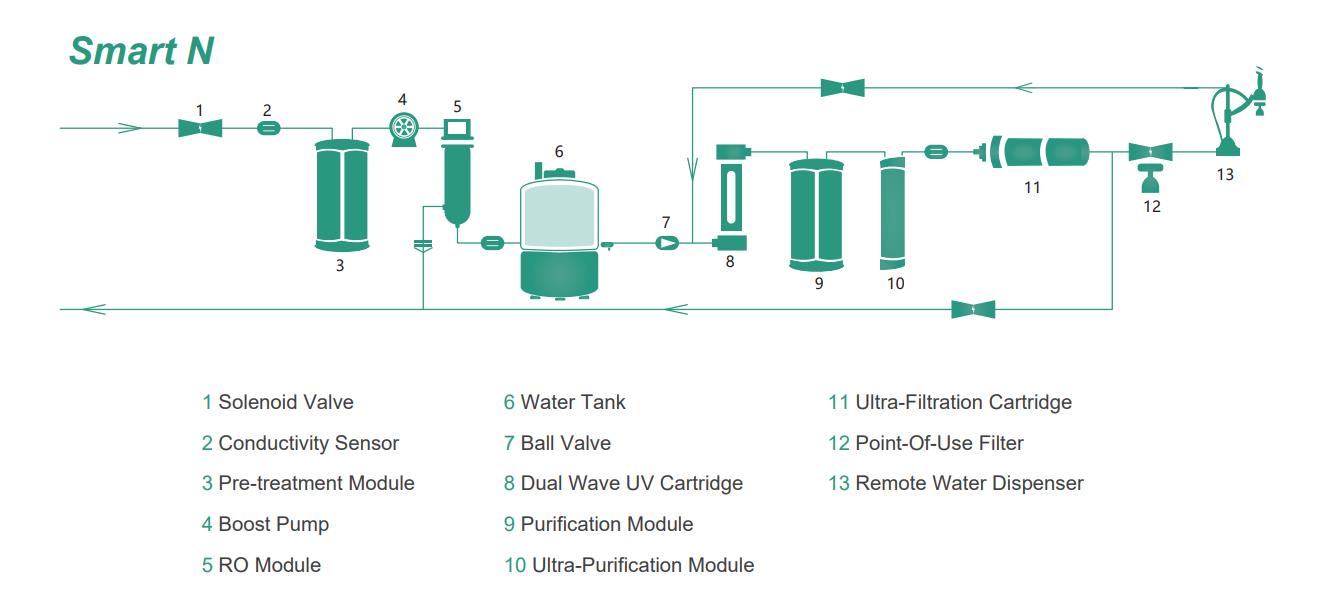

SMART-N System | Smart N15UV | Smart N15VF | Smart N30UV | Smart N30VF |
Pretreatment module | ○ | ○ | ○ | ○ |
High pressure pump | ○ | ○ | ○ | ○ |
Reverse osmosis | ○ | ○ | ○ | ○ |
Dual wavelength UV-lamp | ○ | ○ | ○ | ○ |
Ultra-purification cartridge | ○ | ○ | ○ | ○ |
Microfiltration cartridge | ○ | \ | ○ | \ |
Ultrafiltration cartridge | \ | ○ | \ | ○ |
Point-of-use filter | ○ | ○ | ○ | ○ |

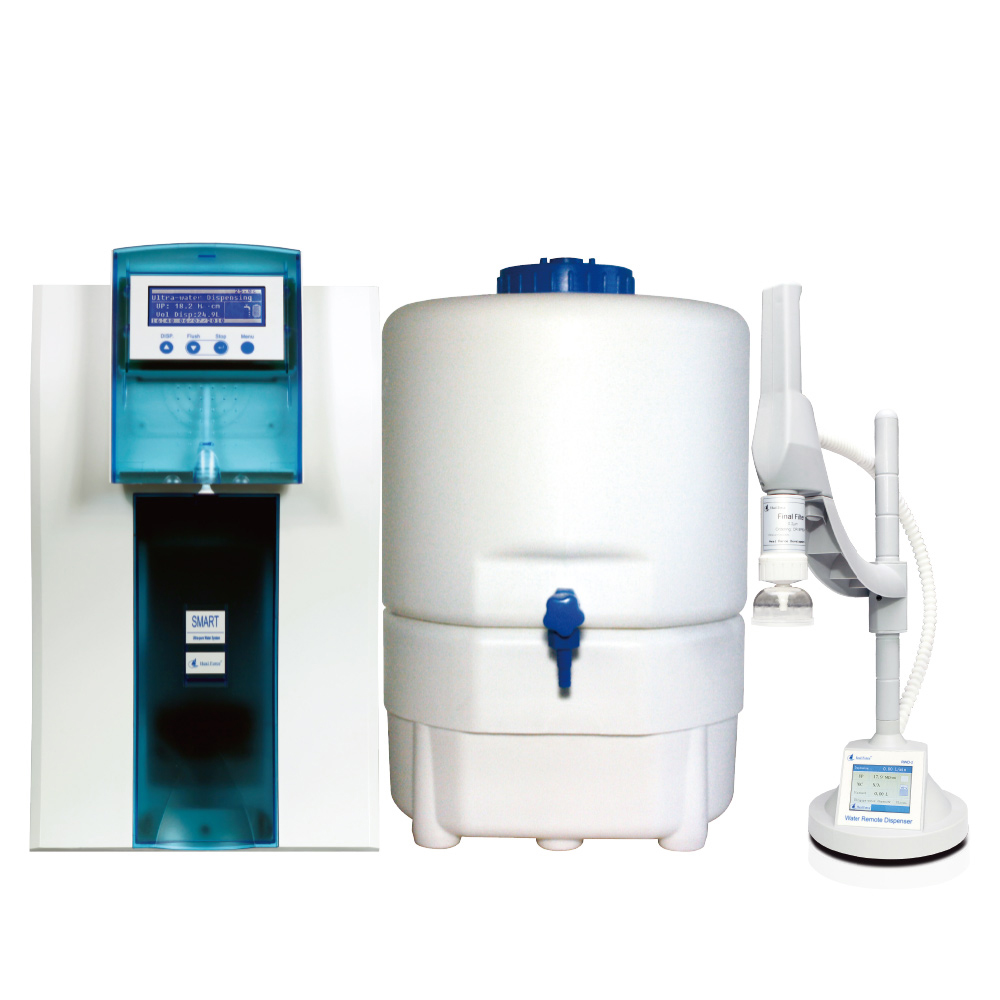

Storage tank 30L | ○ | ○ | ○ | ○ |
Air filter net for tank | ○ | ○ | ○ | ○ |
Remote water dispenser | ○ | ○ | ○ | ○ |
Model | Smart N 15UV | Smart N 15VF | Smart N 30UV | Smart N 30VF |
Feed Water Requirement | ||||
Source | Tap water | Tap water | Tap water | Tap water |
Conductivity* | ＜2000us/cm | ＜2000us/cm | ＜2000us/cm | ＜2000us/cm |
Hardness** | ＜450ppm as CaCO3 | ＜450ppm as CaCO3 | ＜450ppm as CaCO3 | ＜450ppm as CaCO3 |
Pressure | 0.05~0.5MPa(7-72psi) | 0.05~0.5MPa(7-72psi) | 0.05~0.5MPa(7-72psi) | 0.05~0.5MPa(7-72psi) |
Temperature | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ |
Purification Water(Class III) | ||||
Ionic Rejection | ＞95% | ＞95% | ＞95% | ＞95% |
Bacteria Rejection | ＞99% | ＞99% | ＞99% | ＞99% |
Conductivity | 1~20us/cm(RO-2 5us/cm) | 1~20us/cm(RO-2 5us/cm) | 1~20us/cm(RO-2 5us/cm) | 1~20us/cm(RO-2 5us/cm) |
Productivity Rate | 15L/h | 15L/h | 30L/h | 30L/h |
Ultrapurification Water(Class I) | ||||
Resistivity At 25℃ | 18.2MΩ.cm | 18.2MΩ.cm | 18.2MΩ.cm | 18.2MΩ.cm |
Conductivity At 25℃ | 0.055us/cm | 0.055us/cm | 0.055us/cm | 0.055us/cm |
TOC Level*** | 1~5ppb | 1~5ppb | 1~5ppb | 1~5ppb |
Endotoxin(Pyrogens)**** | N/A | ＜0.001EU/ml | N/A | ＜0.001EU/ml |
Particulate(≥0.02um) | ＜1pc/ml | ＜1pc/ml | ＜1pc/ml | ＜1pc/ml |
Bacteria*** | ＜0.1cfu/ml | ＜0.1cfu/ml | ＜0.1cfu/ml | ＜0.1cfu/ml |
Rnase / Dnase** | N/A | Free | N/A | Free |
Manual dispense flow rate | 1.5~2.0L/min | 1.5~2.0L/min | 1.5~2.0L/min | 1.5~2.0L/min |
Automatic dispense volume | 100~60000ml | 100~60000ml | 100~60000ml | 100~60000ml |
Electrical Requirements | ||||
Electrical Voltage | 110V/220V±10% | 110V/220V±10% | 110V/220V±10% | 110V/220V±10% |
Electrical Frequency | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ |
Packing Information | ||||
Net Weight | ||||
Main units | 24kg | 24kg | 24kg | 24kg |
Water tank (30L) | 7kg | 7kg | 7kg | 7kg |
External Dimensions(W×D×H) | ||||
Main units | 315×525×570mm | 315×525×570mm | 315×525×570mm | 315×525×570mm |
Water tank (30L) | 380×380×595mm | 380×380×595mm | 380×380×595mm | 380×380×595mm |
Shipping weight | ||||
Main units | 37kg | 37kg | 37kg | 37kg |
Water tank (30L) | 15kg | 15kg | 15kg | 15kg |
Shipping Dimensions(W×D×H) | ||||
Main units | 525×610×770mm | 525×610×770mm | 525×610×770mm | 525×610×770mm |
Water tank (30L) | 520×440×615mm | 520×440×615mm | 520×440×615mm | 520×440×615mm |
*If feed water quality is poor(Conductivity＞1000us/cm), strengthened pretreatment module and RO-2 type is highly recommended
** When hardness of feed water is high(＞450ppm as CaCO3), 0.5T water soften is recommended
*** Dual wave UV module need to be adopted. Also dependent on feed water, recommended feed TOC＜30ppb
****Ultra-filtration module need to be adopted. Feed water need to be satisfied as above
