Static Storage Series

    Static storage series have advantages of long term storage and big capacity; specifically designed for long-term static storage of biological samples.

  • Parameters

    Static storage series have advantages of long term storage and big capacity; specifically designed for long-term static storage of biological samples.

Overview:

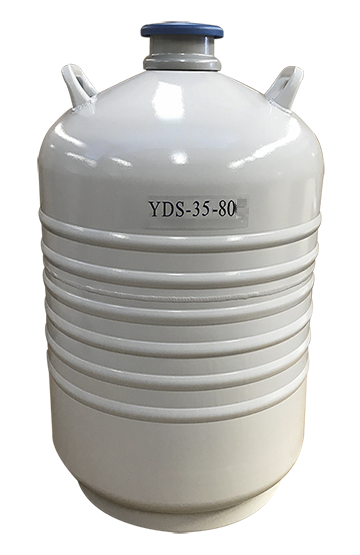

Overview:Static storage series of liquid nitrogen tank is an economical small liguid nitrogen tank for laboratory use. It is specially designed for biological samples that need long term static storage.It has two types of products: large capacity and super long storage period. This series is made of high strength and light weight aluminium with multi layer and super-strong insulation layer. It realizes the safety,Iightness and efficiency of the product,and has a varity of accessories to choose from.
VIALS CANE:Vials cane also can be matched with static storage series tanks to store 0.5ML~5ML vials.

Product Features:

1028cc79

① High strength, light weight and small size aluminum structure;

② Equipped with belt;

③ Ultra low evaporation loss;

④ Large straw capacity;

⑤ Vials tube is optional;

⑥ Lockable lid is optional to prevent unauthorized open;

⑦ Level monitoring system is optional;

⑧ Roller base is optional;

⑨ Liquid nitrogen pump is optional;

⑩ CE certified;

⑪ Five years vacuum warranty;

2fb37b1c26e28ed54d6c305fee224755


MODELYDS-10-80YDS-10-125YDS-13YDS-15YDS-20YDS-25YDS-30
Performance
LN2 Capacity (L)10101315202531.5
Weight Empty (kg)6.26.36.38.59.510.712.9
Neck Opening (mm)801255050505050
Outer Diameter (mm)300300310394394394462
Overall Height (mm)557625623591672700705
Static Evaporation Rate (L/day)0.210.430.120.110.120.140.12
Static Holding Time (day)4824109134168180254

 Maximum Storage Capacity

Canister Diameter (mm)63973838383838
Canister Height (mm)120120276120120/276120/276120/276
Number of Canisters (ea)6166666
Straws Capacity(120 mm canister)0.5ml (ea)2244854792792792792
0.25ml (ea)502219401788178817881788
Straws Capacity(276 mm canister)0.5ml (ea)1284128412841284
0.25ml (ea)2832283228322832

Optional Accessories

Lockable Lid
PU Bag
Level Monitor
Roller Base
MODELYDS-30-80YDS-30-125YDS-35YDS-35-80YDS-35-125YDS-47-127YDS-50B-125
Performance
LN2 Capacity (L)31.531.535.535.535.54750
Weight Empty (kg)13.112.914.214.514.21515.2
Neck Opening (mm)801255080125127125
Outer Diameter (mm)462462462462462508462
Overall Height (mm)710705750754748718818
Static Evaporation Rate (L/day)0.210.350.120.220.370.360.45
Static Holding Time (day)1479028615997130110

 Maximum Storage Capacity

Canister Diameter (mm)63973863977297
Canister Height (mm)120/276120/276120/276120/276120/276120/276120/276
Number of Canisters (ea)66666106
Straws Capacity(120 mm canister)0.5ml (ea)224451247922244512443105124
0.25ml (ea)50221195217885022119521032011952
Straws Capacity(276 mm canister)0.5ml (ea)3624904812843624904882009048
0.25ml (ea)84601994428328460199441781019944

Optional Accessories

Lockable Lid
PU Bag
Level Monitor
Roller Base
