- Parameters
Max Speed：5000r/min
Max RCF：4730xg
Max Capacity：300mlx4
Adopt large torque brushless frequency conversion motor, maintenance-free, no dust, fast lifting speed.
Induction automatic electric suction door lock, with emergency door opening device; self-inspection and protection of door lock, overspeed, unbalance, etc., safe and reliable.
It is precisely controlled by a microcomputer processor, and there is a striking red LED digital display version with button programming; there is also a high-definition touch screen "smart system" version, the display interface simultaneously displays the speed, running time, temperature, and elevating speed gears, as well as the currently selected Rotor specifications, maximum speed and maximum centrifugal force, door cover opening and closing, real-time date and time, etc
.
The unique spring cone sleeve is used to connect the rotor and the main shaft, the rotor is locked 360 degrees, and the loading and unloading of the rotor is non-directional, fast and simple (with technical patents)
Aero forged aluminum rotors (except multi-tube frame rotors) and various Teflon adapters are available.
10 acceleration rates and 10 deceleration rates for users to choose to achieve the best centrifugal effect.
The whole machine is all-steel structure, stainless steel centrifugal chamber; multi-layer protection design, three-stage vibration reduction, safe and stable.
Passed ISO9001, ISO13485, CE and other certifications.

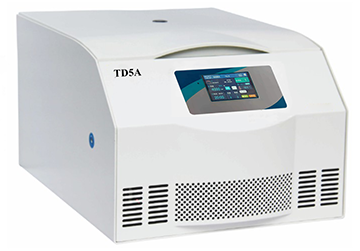

TD5A Technical Parameters：
Max Speed | 5000r/min | Max RCF | 4730*g |
Max Volume | 4*300ml | Speed Accuracy | ±10r/min |
Timer | 1～99min | Noise | ≤60dBA |
Power supply | AC220/220V,50/60HZ | Net Weight | 52KG |
Dimension | 620*450*355mm | Package | 820*520*520mm |
TD5A Matched Rotors：
Rotor Type | Max Speed | Max Volume | Max RCF | Remark |
Swing Rotor | 4000rpm | 4×300ml（Round） | 3180×g | |
Adapter | 4×10×5/7ml | 2-7m lvacuum tube | ||
Adapter | 4×9×10ml | 10ml vacuum tube | ||
Adapter | 4×7×10/15ml | |||
Adapter | 4×2×50ml | |||
Swing Rotor | 4000rpm | 4×300ml（Square） | 3150×g | |
Adapter | 4×16×5/7ml | 2-7ml vacuum tube | ||
Adapter | 4×12×10ml | 10ml vacuum tube | ||
Adapter | 4×9×10/15ml | |||
Adapter | 4×4×50ml | |||
Swing Rotor | 4000rpm | 4×250ml Corning | 3260×g | Corning Centrifuge Bottle |
4×250ml Adapter | ||||
Microplate rotor | 4000rpm | 2×4×96 Well | 2910×g | |
2×3×48 well | 2300×g | |||
Swing Rotor | 5000rpm | 4×1×50ml | 4730×g | |
4×1×100ml | 4730×g | |||
4000rpm | 4×2×100ml | 3020×g | ||
4×2×50ml | 3200×g | |||
4×8×15ml | 3200×g | |||
4×12×5ml | 2480×g | 2-4ml vacuum tube | ||
4×12×7ml | 2760×g | 5-7ml vacuum tube | ||
4×12×10ml | 2880×g | 10ml vacuum tube | ||
Swing Rotor | 4000r/min | 4×16×5ml | 2400×g | 2-4ml vacuum tube |
4×16×7ml | 2830×g | 5-7ml vacuum tube | ||
4×13×10ml | 2830×g | 10ml vacuum tube | ||
Swing Rotor | 4000rpm | 4×24×5ml | 2840×g | 2-4ml vacuum tube |
4×24×7ml | 3140×g | 5-7ml vacuum tube | ||
4×18×10m | 3140×g | 10ml vacuum tube | ||
Angle rotor | 2000rpm | 12×Gable Creamer | 815×g | |
Angle rotor | 5000rpm | 24×15ml | 3500×g | |
Angle rotor | 5000rpm | 30×15ml | 3830×g | |
Angle rotor | 5000rpm | 12×50ml | 3860×g | |
Angle rotor | 4000rpm | 24×50ml | 2970×g | |
Angle rotor | 5000rpm | 6×100ml | 3130×g | |
Angle rotor | 4000rpm | 12×100ml | 2970×g |
