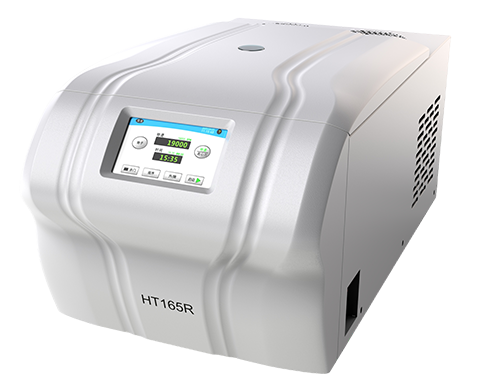

Table Top High Speed Refrigerated centrifuge HT165R

    HT165R Benchtop High Speed Refrigerated Centrifuge

    Max. speed: 16500r/min
    Max. RCF: 26054xg
    Max. capacity: 48x1.5ml


  • Parameters

    HT165R Benchtop High Speed Refrigerated Centrifuge

    Max. speed: 16500r/min
    Max. RCF: 26054xg
    Max. capacity: 48x1.5ml


HT165R Benchtop High Speed Refrigerated Centrifuge

HT165R benchtop high speed refrigerated centrifuge, ideal for high-speed lab application.  Excellent functionality when used with rotors compatible with  EP tube as well as PCR strips, spin columns.

HT165R adopts dynamic temperature control technology, which dynamically adjusts the working state of the compressor according to the heat generated during rotor spinning, with accurate temperature control, energy saving and high efficiency.





Product Advantage

1. 8 rotors available, compatible with 0.2ml, 1.5ml 5ml tube and PCR strip. The max speed of angle rotor 24x1.5ml up to 16500r/min, G-force is up to 26054xg.

2. 5-inch HD touch screen, the setting parameters and running parameters can be got at a glance.

3. 11 acceleration and 12 deceleration rates, to achieve best centrifugation result.

4. Featured with a separate short spin key for quick centrifugation.

5. Three timing mode: start timing, speed timing and continuous timing.

6. Timer range: 1min to 99h59min or 1s to 99min59s are optional.

7. The fastest acceleration time only takes 10s.

8. Multiple user-defined programs available.

9. A separate key can make fast pre-cooling.  Pre-cooling parameters can be set and saved automatically.

10. Centrifuge lid with soft-touch lid closure.

11. Automatic rotor identification, multiple protection against over-speed, over-temperature, motor over-heating and door cover self-locked.

12. Adopt 316 stainless steel chamber, 7075-T6 series aluminum alloy rotor, hard anodized, strong corrosion resistance.




Model

HT165R

Order No.

0202253002

Max. speed

16500r/min

Max. RCF

26054xg

Max. capacity

48x1.5ml

Speed accuracy

±10r/min

Time setting range

1min to 99h59min /1s to 99min59sec

Temperature setting range

-20℃ to +40℃

Temperature accuracy

±1℃

Compressor unit

VF compressor unit, environment-friendly refrigerant(R134a)

Noise

≤65dB(A)

Power supply

AC220V±22V 50Hz

Power consumption

700W

Dimension (WxDxH)

320x590x270(mm)

Packing dimension (WxDxH)

430x780x450(mm)

Weight

42kg


Rotor No.

Rotor type

Max. speed(r/min)

Max. RCF(xg)

Capacity

No.1

Angle rotor

16500

18360

12x1.5ml

Adaptor

16500

18360

0.2ml/0.5ml

No.2

Angle rotor

15000

15840

12x5ml

Adaptor

15000

15840

0.5ml/1.5ml

No.3

Angle rotor

16500

26054

24x1.5ml

Adaptor

16500

26054

0.2ml/0.5ml

No.4

Swing rotor

13000

16816

24x1.5ml

Adaptor

13000

16816

0.2ml/0.5ml

No.5

Angle rotor

13000

16020

6x8x0.2ml PCR strip

No.6

Angle rotor

13500

19764

24xspincolumn tube

No.7

Angle rotor

14000

22140

30x1.5ml

No.8

Angle rotor

13000

18525

48x1.5ml

Adaptor

13000

18525

0.2ml/0.5ml
