Transport Storage Series

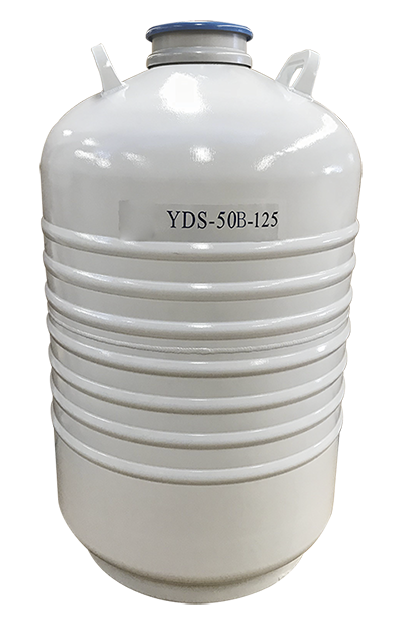

    The transport storage series liquid nitrogen tank is designed for long-distance transport of liquid nitrogen or biological samples. It uses a special support structure design for these containers.

  • Parameters

    The transport storage series liquid nitrogen tank is designed for long-distance transport of liquid nitrogen or biological samples. It uses a special support structure design for these containers.

Overview:

The transport storage series liquid nitrogen tank series are economical small liquid nitrogen tanks designed specifically for biological samples static storage and for transporting biological samples.The series is made of high strength lightweight aluminum alloy, containing multi-layer insulation to make the product safe, lightweight and efficient, and it has a variety of accessories optional.

Product Features:

①    High strength, light weight and small size aluminum structure;
②    Equipped with belt;
③    Ultra low evaporation loss;
④    Large straw capacity;
⑤    Vials tube is optional;
⑥    Lockable lid is optional to prevent unauthorized open;
⑦    Level monitoring system is optional;
⑧    Roller base is optional;
⑨    Liquid nitrogen pump is optional;
⑩   CE certified;
⑪    Five years vacuum warranty;

Product Advantages:

● Internal support, stable transportation
Professional internal support structure design to ensure the stability of the tank and the safety of samples during transportation.

● Adiabatic and vacuum technology
Automatic winding machine evenly wraps multiple layers of super performance insulation layer, advanced insulation and vacuum technology to ensure storage time up to 3 months.

● Multiple model selection
Capacity from 20 to 50 liters, a total of 7 models are available to meet user needs.

Structure Chart:

structure-chart


MODELYDS-20BYDS-30BYDS-35BYDS-35B-80YDS-35B-125YDS-50B YDS-50B-125
Performance
LN2 Capacity (L)2031.535.535.535.55050
Weight Empty (kg)9.512.914.214.514.617.217.3
Neck Opening (mm)5050508012550125
Outer Diameter (mm)394462462462462462462
Overall Height (mm)672705749753748810818
Static Evaporation Rate (L/day)0.200.200.200.300.410.240.45
Static Holding Time (day)10115917911986213110

Maximum Storage Capacity

Canister Diameter (mm)38383863973897
Canister Height (mm)120/276120/276120/276120/276120/276120/276120/276
Number of Canisters (ea)6666666
Straws Capacity
(120 mm canister)
0.5ml (ea)792792792224451247925124
0.25ml (ea)178817881788502211640178811640
Straws Capacity
(276 mm canister)
0.5ml (ea)1284128412843624904812849048
0.25ml (ea)283228322832846020760283220760

Optional Accessories

Lockable Lid
PU Bag
SmartCap
Roller Base
