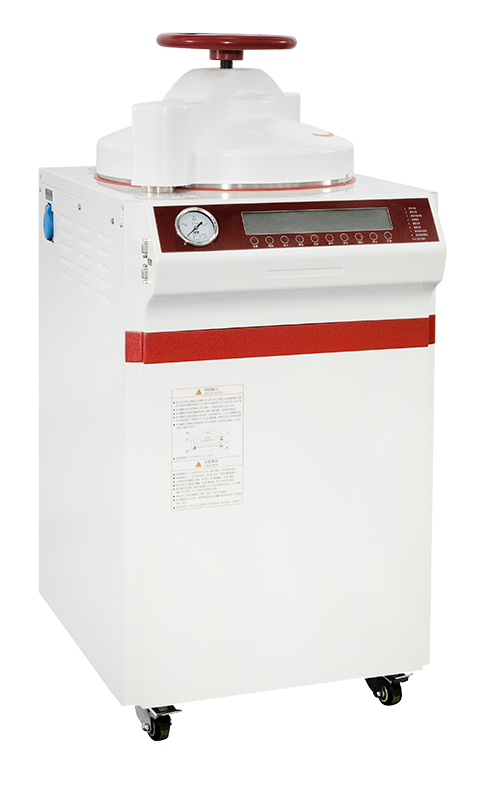

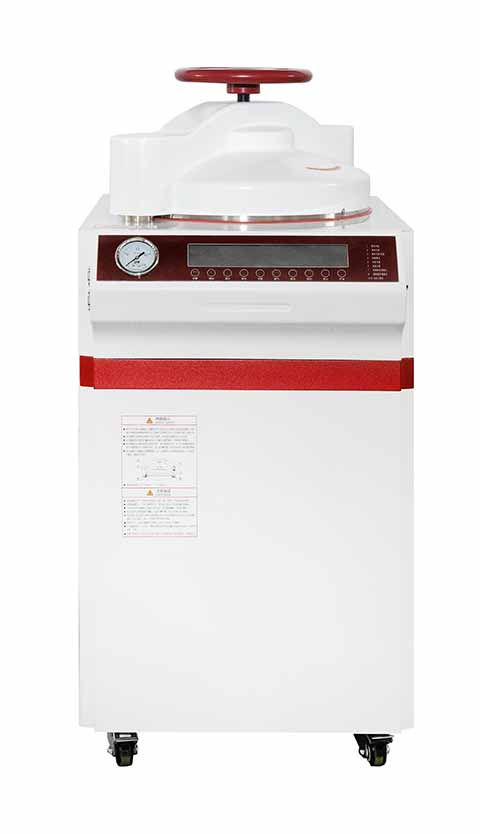

VERTICAL AUTOCLAVE（BXM-60VE/85VE/110VE）

The autoclave is the equipment which utilizes the pressure saturated steam for sterilizing goods quickly and reliable. It is applicable to be used in medical and health work, scientific and agriculture institutes. It is a perfect equipment for sterilizing the medical equipment, dressings, glassware, liquor culture mediums, etc.

Parameters

PMMA I microcomputer intelligent operating system

Large-size capacitive touch screen enables real-time viewing of the operating parameters and workingstatus diagram of the device during its working phase

Positive pressure pulse, 6 level cold air discharge procedure can be set to ensure the thorough cold airdischarge

Equipped with 8 fixed programs +6 custom programs

After sterilization, the 6-stage pressure relief rate is optional

With three-level authority management of engineer, administrator and operator

The whole machine anti - hot design, heat insulation and beautiful

Classic handwheel type door opening structure, with double protection of pressure mechanicalself-locking and closed cover self-inspection

Equipped with 100-hour countdown reservation function

One key electric drainage, more convenient for operation

Equipped with boiling point setting function to ensure that the instrument can be heated to the requiredsterilization temperature at high altitude

Standard equipped with condenser + air cooling + secondary water cooling rapid cooling system toshorten the waiting time for opening the cover

One waterproof socket, two 485 ports and G1/2A standard test pipe thread holes

Fault detection function, overtemperature shutdown protection, water cut-off protection, overpressureself-relief protection, anti-hot protection, overload protection,

Short circuit protection, leakage protection, independent electronic overvoltage protection and othermultiple security

Model	BXM-60VE	BXM-85VE	BXM-110VE
Volume [L]	60	85	110
Drum diameter[mm]	400	400	400
Power Supply [V, Hz]	220± 10%, 50±2%	220± 10%, 50±2%	220± 10%, 50±2%
Environment Temp. [°C]	5~40	5~40	5~40
Environment Humidity [%RH]	20~80	20~80	20~80
Power [kW]	3.2	3.5	3.5
Sterilization Temp. [ °C]	105~135	105~135	105~135
Temp. fluctuations [°C]	˂±1	˂±1	˂±1
Temp. Uniformity[°C]	≦ ±0. 5	≦ ±0. 5	≦ ±0. 5
Melting Temp. [°C]	50~100	50~100	50~100
Heat Preservation Temp. [ °C]	40-60	40-60	40-60
Sterilization Timer Range [min]	0-120	0-120	0-120
Melting Timer Range [min]	0-6000	0-6000	0-6000
Heat Preservation Timer Range [min]	0-6000	0-6000	0-6000
Reservation Range [min]	0-6000	0-6000	0-6000
Design Pressure [MPa]	0.38	0.38	0.38
Working Pressure [MPa]	0.22	0.22	0.22
Pressure gauge indicating range[MPa]	0-0.4	0-0.4	0-0.4
Housing Dimensions W×D×H [mm]	5356401075	5356401165	5356401275
Basket Dimensions [mm]	370*245	370*285	370*245
Number of Baskets [pc]	2	2	3
Net weight [kg]	100	105	111
Gross weight [kg]	118	124	130
Package size [mm]	6707801240	6707801330	6707801440
