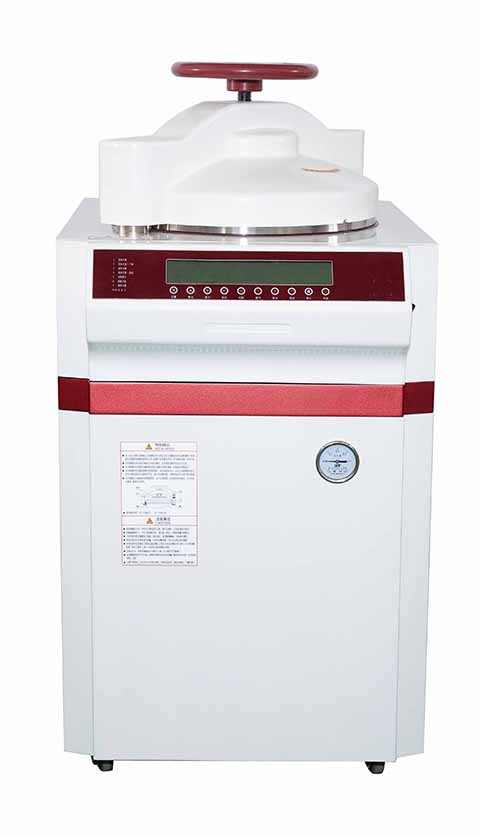

VERTICAL AUTOCLAVE（BXM-60VF/85VF/110VF）

High pressure steam sterilization of media, instruments, glassware and containers, wastes, etc.; Large volume compactmaterial sterilization (such as fabric, wrapping, large bottle of medium) This product has a positive pressure pulsationprocedure to ensure the thorough discharge of cold air, improve steam penetration, to ensure the sterilization effect;Equipped with vacuum drying function, to avoid the secondary pollution of transfer drying after sterilization

Parameters

BXM-VF is an upgrade from BXM-VE,With similar features, the following functions are added：

PMMA II microcomputer intelligent operating system

Equipped with vacuum drying function, to avoid the secondary pollution of transfer drying after sterilization.

Fault detection function, overtemperature shutdown protection, water cut-off protection, overpressure self-relief protection,anti-hot protection, overload protection,

Short circuit protection, leakage protection,Overpressure shutdownprotection ,independent electronic overvoltage protection andother multiple security

Model	BXM-60VF	BXM-85VF	BXM-110VF
Volume [L]	60	85	110
Drum diameter[mm]	400	400	400
Power Supply [V, Hz]	220±10%, 50±2%	220±10%, 50±2%	220±10%, 50±2%
Environment Temp. [°C]	5~40	5~40	5~40
Environment Humidity [%RH]	20~80	20~80	20~80
Power [kW]	4.8	5.2	5.4
Sterilization Temp. [°C]	105~135	105~135	105~135
Temp. fluctuations [°C]	˂±1	˂±1	˂±1
Temp. Uniformity[°C]	≦±0.5	≦±0.5	≦±0.5
Melting Temp. [°C]	50~100	50~100	50~100
Drying Temp. [°C]	80-130	80-130	80-130
Heat Preservation Temp. [°C]	40-60	40-60	40-60
Sterilization Timer Range [min]	0-120	0-120	0-120
Drying Time. [min]	10-6000	10-6000	10-6000
Melting Timer Range [min]	0-6000	0-6000	0-6000
Heat Preservation Timer Range [min]	0-6000	0-6000	0-6000
Reservation Range [min]	0-6000	0-6000	0-6000
Design Pressure [MPa]	0.38	0.38	0.38
Working Pressure [MPa]	0.22	0.22	0.22
Pressure gauge indicating range[MPa]	0.1-0.5	0.1-0.5	0.1-0.5
Housing Dimensions W×D×H [mm]	5857501075	5857501165	5857501275
Basket Dimensions [mm]	370*245	370*285	370*245
Number of Baskets [pc]	2	2	3
Net weight [kg]	126	131	136
Gross weight [kg]	152	160	168
Package size [mm]	7309001240	7309001330	7309001440
