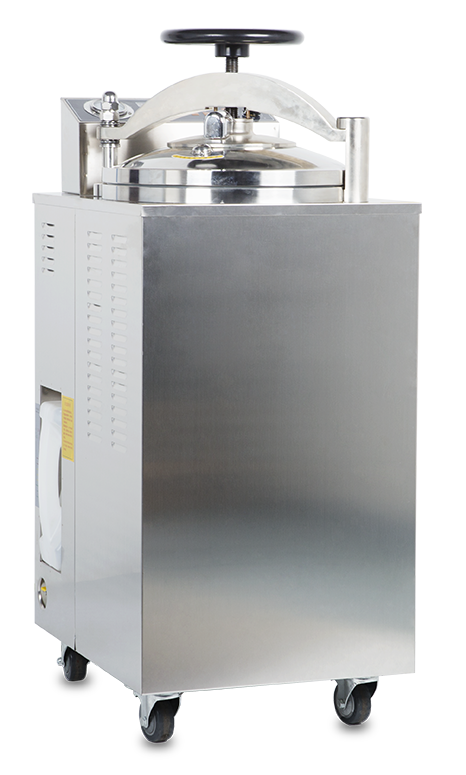

VERTICAL AUTOCLAVE（YXQ-50A/70A/100A）

The autoclave is the equipment which utilizes the pressure saturated steam for sterilizing goods quickly and reliable. It is applicable to be used in medical and health work, scientific and agriculture institutes. It is a perfect equipment for sterilizing the medical equipment, dressings, glassware, liquor culture mediums, etc.

Parameters

Product Features
Technical Parameters

Made of SUS304
Handwheel type quick-open cover
Microcomputer intelligent control
Self expanding type seal ring
Exhaust cold air automatically
Inner circulation exhaust
Self-control when lack of water
Self-exhaust when over pressure
Pressure safety interlock
Over temperature protection
Buzzer reminds when sterilization ends
Equipped with G1/2A internal thread sample test hole
Three control modes:
a. heating – sterilization - quick exhaust
b. heating – sterilization - slow exhaust
c. heating – sterilization - no exhaust

Model	YXQ-50A	YXQ-70A	YXQ-100A
Volume [L]	50	75	100
Power [kW]	2.7	3.5	3.5
Drying Power [kW]	/	/	/
Power Supply [V, Hz]	220±10%,50±2%	220±10%,50±2%	220±10%,50±2%
Max. Working / Design Temp. [°C]	135 / 139	135 / 139	135 / 139
Max. Working / Design Pressure[MPa]	0.22 / 0.25	0.22 / 0.25	0.22 / 0.25
Timer Range [min]	4~120	4~120	4~120
Drying Timer Range [min]	/	/	/
Internal Dimensions [mm]	Ø300×755	Ø400×720	Ø400×830
Housing Dimensions W×D×H [mm]	445×525×1120	485×605×1175	485×605×1290
Basket Dimensions [mm]	Ø280×210	Ø360×280	Ø360×240
Number of Baskets [pc]	3	2	3
