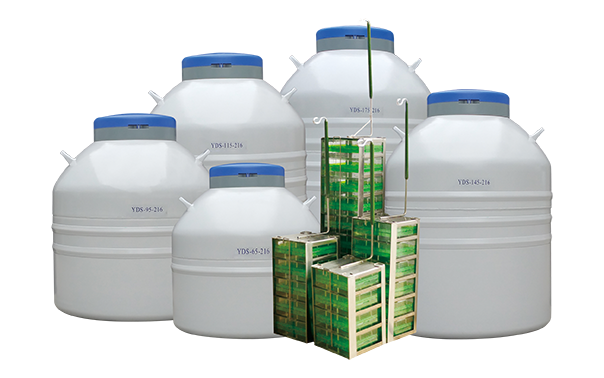

Wide Neck Laboratory Series

    Wide neck laboratory series liquid nitrogen tank has advantages of large capacity and easy to place and pick samples. It is mainly used for long-term storage of biological samples and need frequent extraction of samples.

  • Parameters

    Wide neck laboratory series liquid nitrogen tank has advantages of large capacity and easy to place and pick samples. It is mainly used for long-term storage of biological samples and need frequent extraction of samples.

Overview:

Overview:Wide neck laboratory series liquid nitrogen tank combines the advantages of low liquid nitrogen consumption and medium storage capacity. It has the advantages of light weight, less space occupation and high efficiency storage of large sample freezing. It can meet the dfferent needs of laboratory professionals. All models include freeze shelves and PC freeze boxes to ensure easy storage of samples.

Product Features:

7314c42a

① Durable aluminum structure;

② Equipped with racks and vial boxes;

③ Large capacity, low liquid nitrogen consumption;

④ Lockable lid is optional, to keep the safety of samples;

⑤ Level monitoring system is optional;

⑥ Roller base is optional;

⑦ CE certified;

⑧ Five years vacuum warranty;

d08484878afd0f1f1afdddde69adb930

Sample Search:

For long-term storage design, easy to pick and place samples;

Marked frozen racks and cryo boxes for quick and efficient access to the desired sample;

Can be equipped with liquid level monitor, real-time monitoring level height, and issued a low level sound and light alarm;

Level Monitor:

Provide advanced level monitor to protect irreplaceable biological samples

When the liquid nitrogen level is low, will issue a sound and light alarm to remind


MODELYDS-10-125-FYDS-30-125-FYDS-35-125-FYDS-47-127-6YYDS-50B-125-F
Performance
LN2 Capacity (L)1031.535.54750
Weight Empty (kg)6.31314.618.217.3
Neck Opening (mm)125125125127125
Outer Diameter (mm)300462462508462
Overall Height (mm)625704748718818
Static Evaporation Rate (L/day)0.420.350.360.360.45
Static Holding Time (day)249097130110

 Maximum Storage Capacity

Racks
2ml Freezing Tube
Number of Racks (ea)16/76/76/76/7
Rack Dimension (mm)82×8482×8482×84105×10082×84
Vial Boxes Dimension (mm)76×7676×7676×769876×76
Boxes per Rack (ea)44556
1.2; 1.8 & 2 ml Vials (Internally Threaded)100600/700750/8751110/1295900/1050
Racks
5ml Freezing Tube
Number of Racks (ea)──────────
Rack Dimension (mm)──────────
Vial Boxes Dimension (mm)──────────
Boxes per Rack (ea)──────────
 1.2; 1.8 & 2 ml Vials (Internally Threaded)──────────

Optional Accessories

Lockable Lid
PU Bag────
SmartCap
Roller Base──
MODELYDS-65-216-FYDS-95-216-FYDS-115-216-FYDS-145-216-FYDS-175-216-F
Performance
LN2 Capacity (L)6595115145175
Weight Empty (kg)38.341.342.348.953.8
Neck Opening (mm)216216216216216
Outer Diameter (mm)681681681681681
Overall Height (mm)7127748469461060
Static Evaporation Rate (L/day)0.780.970.940.960.95
Static Holding Time (day)8398122151184

 Maximum Storage Capacity

Racks
2ml Freezing Tube
Number of Racks (ea)6/76/76/76/76/7
Rack Dimension (mm)142×144142×144142 x 144142x 144142x 144
Vial Boxes Dimension (mm)134x 134134x 134134 x 134134x 134134×134
Boxes per Rack (ea)456810
1.2; 1.8 & 2 ml Vials (Internally Threaded)2400/28003000/35003600/42004800/56006000/7000
Racks
5ml Freezing Tube
Number of Racks (ea)6/76/76/76/76/7
Rack Dimension (mm)142x 144142x 144142 x 144142x 144142×144
Vial Boxes Dimension (mm)134x 134134×134134x 134134x 134134x 134
Boxes per Rack (ea)22345
1.2; 1.8 & 2 ml Vials (Internally Threaded)972/1134972/11341458/17011944/22682430/2835

Optional Accessories

Lockable Lid
PU Bag──────────
SmartCap
Roller Base
