Laboratory and medical cryogenic equipments: Combined Refrigerator and Freezer -40℃ Freezer
•High-efficiency refrigerating system
•High-precision computerized temperature control system
•Comprehensive security system
•Comprehensive security system
•Direct cooling and electronic temperature control
•High-efficiency refrigerating system
•High-precision computerized temperature control system
•Comprehensive security system
•Comprehensive security system
•Direct cooling and electronic temperature control

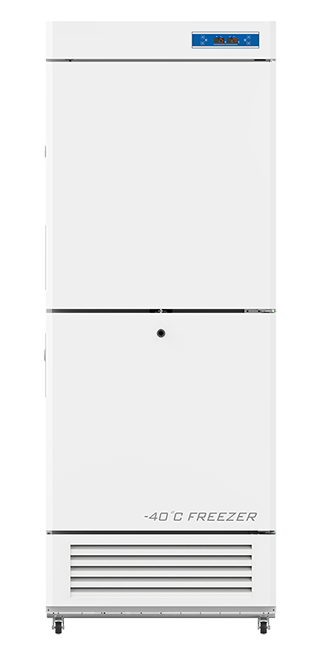

Labtech 2℃~8℃/-10℃~-40℃ medical grade refrigerator freezer or vaccine storage refrigerator freezer YCD-FL300 comes with upper refrigeration and lower freezing separately control. This fridge freezer combo adopts 2 compressors and CFC-free refrigeration, ensuring high-efficiency and energy-saving. And it can ensure fast refrigeration and separately control of upper refrigeration chamber and lower freezing chamber. We design the thermal insulation with thicker insulation layer and CFC-free polyurethane foam technology for better insulation effect. The digital temperature display can indicate operating status clearly, and you can set the high temperature or low temperature alarm points regarding to your needs.
High-efficiency Refrigerating System
This combination refrigerator freezer is equipped with high-efficiency compressors for upper refrigeration chamber and lower freezing chamber. And the refrigerant is environmentally friendly, which can ensure energy-saving and high-efficiency. The CFC polyurethane foaming technology and thicker insulation layer cam improve the effect of thermal insulation.
High-precision Computerized Temperature Control System
The temperature control system of this combination refrigerator freezer can display the humidity and temerature independently. And you are able to check and view the operating status clearly on the display. This medical grade refrigerator freezer allows you to set the temperature freely with upper temperature in the range of 2℃~8℃ and lower temperature in a range of -10℃~-40℃.
Comprehensive Security System
It is also a secure vaccine storage refrigerator freezer for the in-built 8 audible and visual alarm system, including high ambient temperature alarm, high\low temperature alarm, sensor failure alarm, door ajar alarm, which ensure safer sample storage.
Combination refrigerator freezer with upper 2°C ~ -8°C and lower-10~-40℃
Separate control of upper refrigeration chamber and lower freezing chamber with separate compressors
Direct cooling and electronic temperature control for fast refrigeration and constant temperature
Equipped with sheet metal refrigerated drawers and acrylic plates
Digital temperature display to control temperature precisely and monitor operating status clearly
Ensure safe sample storage with inter-room independent door lock and independent external padlock
Tube-type condenser and built-in type evaporator work well to keep the temperature in the cabinet

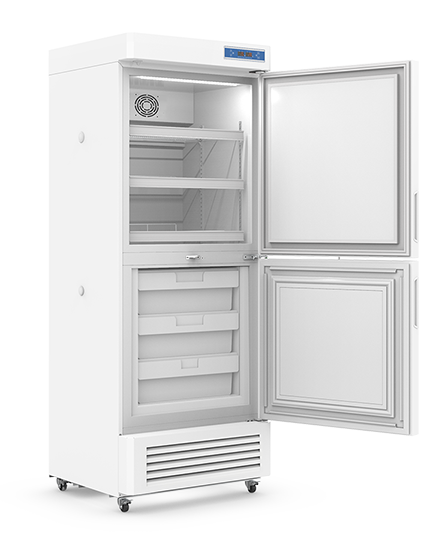

The lower freezing chamber is equipped with drawers and the refrigeration chamber is equipped with steel wire shelves
LED lighting in the cabinet of the combination refrigerator freezer provides great visibility
The combination refrigerator freezer is equipped with casters at the bottom for conveniently movement and placement
| 2~8°C /-10~-40°C Combined Refrigerator & Freezer | |
| Model | YCD-FL300 |
| Cabinet Type | Upright |
| Capacity(L) | 300, R:197, F:103 |
| Internal Size(W*D*H)mm | R:600*510*657, F:500*460*535 |
| External Size(W*D*H)mm | 700*640*1876 |
| Package Size(W*D*H)mm | 760*720*1935 |
| NW/GW(Kgs) | 100/111 |
| Performance | |
| Temperature Range | R:2~8,F:-10~-40 |
| Ambient Temperature | 16-32℃ |
| Cooling Performance | R:5, F:-40 |
| Climate Class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 2pcs |
| Cooling Method | R: Forced air cooling, F:Direct cooling |
| Defrost Mode | R:Automatic, F:Manual |
| Refrigerant | R:R600a, F:R290 |
| Insulation Thickness(mm) | R:50, F:100 |
| Construction | |
| External Material | PCM |
| Inner Material | Aluminum plate with spraying |
| Shelves | R:3(coated steel wired shelf), F:3(ABS) |
| Door Lock | Yes |
| Lighting | LED |
| Access Port | 2pcs. Ø 25 mm |
| Casters | 4 (2 casters with brake) |
| Alarm | |
| Temperature | High/Low temperature |
| System | Sensor failure, Door ajar |
| Electrical | |
| Power Supply(V/HZ) | 220-240~/50,Optional 220-240~/60,110~/60 |
| Power(W) | 260 |
| Power Consumption(KWh/24h) | 2.92 |
| Rated Current(A) | 2.67 |
