Laboratory and medical cryogenic equipments: Combined Refrigerator and Freezer -40℃ Freezer
•High-precision Computerized Temperature Control System
•High-efficiency Refrigerating System
•Comprehensive Security System
•Direct cooling and electronic temperature control
•Tube-type condenser and built-in type evaporator
•High-precision Computerized Temperature Control System
•High-efficiency Refrigerating System
•Comprehensive Security System
•Direct cooling and electronic temperature control
•Tube-type condenser and built-in type evaporator

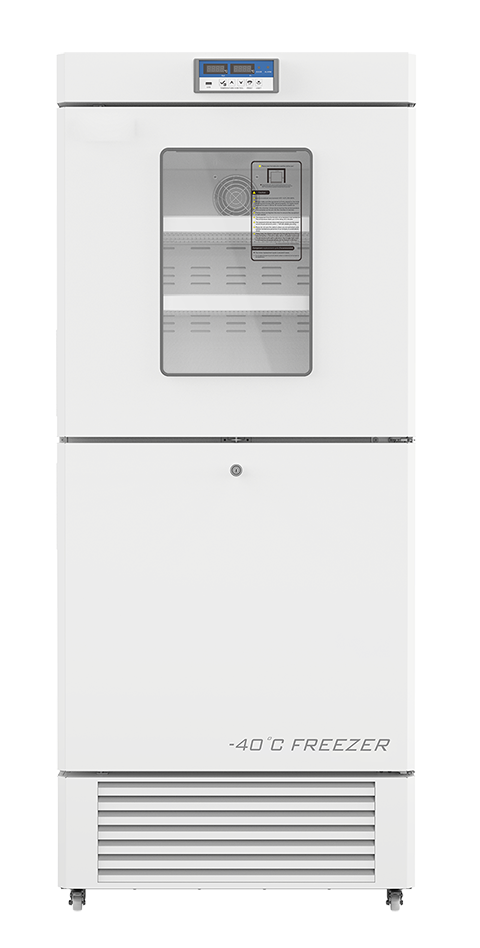

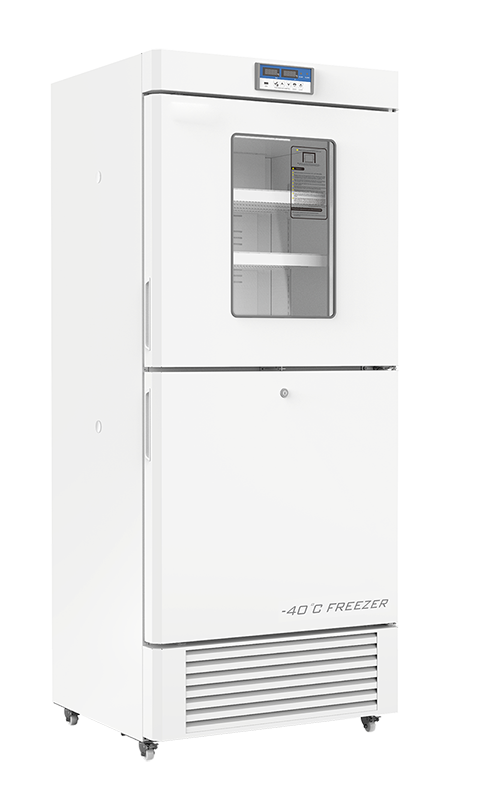

Labtech 2℃~8℃/-10℃~-40℃ refrigerator freezer combo YCD-FL450 works as scientific refrigerator freezer and medical refrigerator and freezer, which comes with brand new appearance. It is fridge freezer with upper refrigeration and lower freezing separately control. This fridge freezer combo adopts high-efficiency 2 compressors and environmentally friendly refrigeration, which can ensure fast refrigeration and separately control of upper refrigeration chamber and lower freezing chamber. The digital temperature display can indicate operating status clearly, and you can set the high temperature or low temperature alarm points regarding to your needs. We design the thermal insulation with thicker insulation layer and CFC-free polyurethane foam technology for better insulation effect.
High-precision Computerized Temperature Control System
The temperature control system of this combination refrigerator freezer can display the humidity and temerature independently. And you are able to check and view the operating status clearly on the display. This medical grade refrigerator freezer allows you to set the temperature freely with upper temperature in the range of 2℃~8℃ and lower temperature in a range of -10℃~-40℃.
High-efficiency Refrigerating System
This combination refrigerator freezer is equipped with high-efficiency compressors for upper refrigeration chamber and lower freezing chamber. And the refrigerant is environmentally friendly, which can ensure energy-saving and high-efficiency. The CFC polyurethane foaming technology and thicker insulation layer cam improve the effect of thermal insulation.
Comprehensive Security System
It is also a secure vaccine storage refrigerator freezer for the in-built 8 audible and visual alarm system, including high ambient temperature alarm, high/low temperature alarm, sensor failure alarm, communication failure (USB) data download failure alarm, low battery alarm, door ajar alarm, power failure alarm, which ensure safer sample storage.
Combination refrigerator and freezer with upper 2°C ~ -8°C and lower-10℃~-40℃
Direct cooling and electronic temperature control for fast refrigeration and constant temperature
Separate control of upper refrigeration chamber and lower freezing chamber with separate compressors
Digital temperature display to control temperature precisely and monitor operating status clearly
Ensure safe sample storage with inter-room independent door lock and independent external padlock
Tube-type condenser and built-in type evaporator work well to keep the temperature in the cabinet
LED lighting in the cabinet of the combination refrigerator freezer provides great visibility

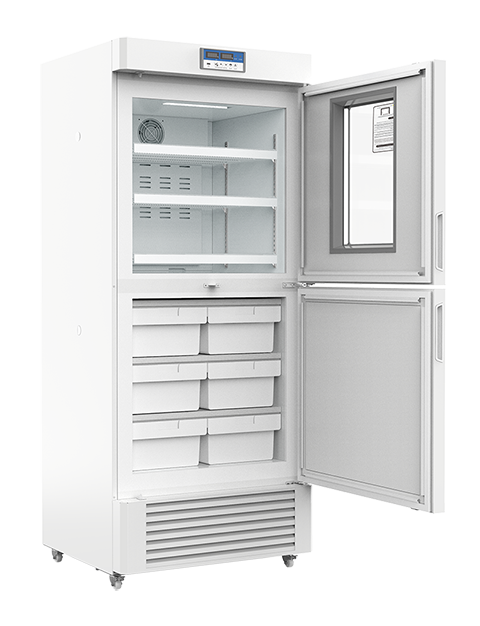

The lower freezing chamber is equipped with drawers and the refrigeration chamber is equipped with steel wire shelves
The combination refrigerator freezer is equipped with casters at the bottom for conveniently movement and placement
Standard with Build-in USB datalogger for temperature data recording
Scope of ApplicationMeling upright freezer and refrigerator combo Suitable for freezing of ice bars and storage of various things needing refrigerated storage such as reagent, etc. Suitable for use in hospitals, clinics, health and disease prevention systems, laboratories in colleges & universities, the frozen food industry and catering industry, etc.
| 2~8°C /-10~-40°C Combined Refrigerator & Freezer | |
| Model | YCD-FL450 |
| Cabinet Type | Upright |
| Capacity(L) | 450, R:225, F:225 |
| Internal Size(W*D*H)mm | R:650*570*627,F:650*570*627 |
| External Size(W*D*H)mm | 810*735*1960 |
| Package Size(W*D*H)mm | 895*820*2135 |
| NW/GW(Kgs) | 146/173 |
| Performance | |
| Temperature Range | R:2~8, F:-10~-40 |
| Ambient Temperature | 16-32℃ |
| Cooling Performance | R:5, F:-40 |
| Climate Class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 2pcs |
| Cooling Method | R: Forced air cooling, F:Direct cooling |
| Defrost Mode | R: Automatic, F: Manual |
| Refrigerant | R: R600a, F: 290 |
| Insulation Thickness(mm) | R:80, F:80 |
| Construction | |
| External Material | PCM |
| Inner Material | Aluminum plate with spraying |
| Shelves | R:3(coated steel wired shelf), F:6(ABS) |
| Door Lock with Key | Yes |
| Lighting | LED |
| Access Port | 2 |
| Casters | 4 (2 casters with brake) |
| Data Logging/Interval/Recording Time | USB/Record every 10 minutes/2 years |
| Backup Battery | Yes |
| Door with Heater | Yes |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature |
| Electrical | Power failure, Low battery |
| System | Sensor failure, Door ajar, USB datalogger failure, Communication failure |
| Electrical | |
| Power Supply(V/HZ) | 220-240~/50,Optional 220-240~/60,110~/60 |
| Power(W) | 374 |
| Power Consumption(KWh/24h) | 4.95 |
| Rated Current(A) | 3.12 |
| Accessory | |
| Standard | RS485, Remote alarm contact |
| Options | Printer |
