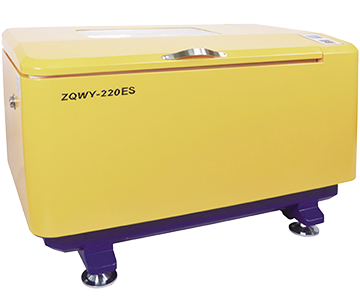

ZQWY-220ES Horizontal Large-capacity Temperature Control Shaking Incubator

This cooling shaking incubator has a huge capacity.

The shaking platform is 905mm×530mm, 5L bottle can be placed on that platfom.

This cooling shaking incubator has a huge capacity.

The shaking platform is 905mm×530mm, 5L bottle can be placed on that platfom.

1. Large backlighting LCD display that making parameters setting and viewing easily. Keyboard blocking prohibits miss operation.

2. Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.

3. Forced air circulation via low noise fan ensures a homogenous air mixture.

4. Audible and Visible Alarms alert the user and automatic power-off under abnormal conditions.

5. Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.

6. Streamlined shape, backing finish outer cover and stainless interior chamber with rounded corners easy to clean and protect bacteria breeding.

7. Insulating and tempered glass door provides good view of incubating state without opening lids.

8. High quality and low noise imported CFC free compressors ensure refrigeration effect and stable.

9. The EMC (Electromagnetic Interference) design makes machine more accurate and stable.

10. Open-Door Cutout Switch stops agitation when chamber is open providing a more favorable work environment.

11. With ultraviolet sterilization function.

1. Servo-motor makes speed control precisely and ensures high-speed performance and stability.

2. Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is

30-600 minutes adjustable, ensures machine working long time in low temperature without ice block.

3. With adjustable support foot and roller for easy movement.

4. Special designed vent satisfy the oxygen need of sample.

5.Product can be updated to LCD Touch Screen that making parameters setting and viewing easily. Such as:

a. The setting temperature, speed, time and the real temperature, speed, remaining time are shown simultaneously.

b. Keyboard blocking prohibits miss operation.

c. Setting rotation direction is positive or reverse.

d. Setting circulation fan opens normally or automatically.

e. The data easily transfer through the USB interface.

6. The plastic molding clamps make it easily to put and take flasks with one hand.

Product Name	Large Capacity Horizontal Refrigerated Shaking Incubator
Model	ZQWY-220ES
Shaking Range	10-300rpm
Shaking Control	±1rpm
Orbit (Diameter)	φ26mm(standard); φ50mm(optional)
Temp. Range	4~60℃(at 23℃~25℃)
Temp. Accuracy	±0.1℃
Temp. Uniformity	±1℃(at 37 ℃)
Display	LCD
Air circulation	Forced air circulation
Parameter Control	P.I.D Microprocessor
Max. Capacity (Stainless steel clamps)	250ml×70 or 500ml×48 or 1000ml×24 or 2000ml×15 or 15000ml×4
Timer Range	0-999.9 hrs.
Platform Size (L×W)	905mm×630mm
Power Source	AC220±10% (110V is optional) 50~60Hz
Overall Dimensions (L×W×H)	1340mm×880mm×990mm
Weight	314kg
Noise Level	<55dB
The inner effective height	645mm
